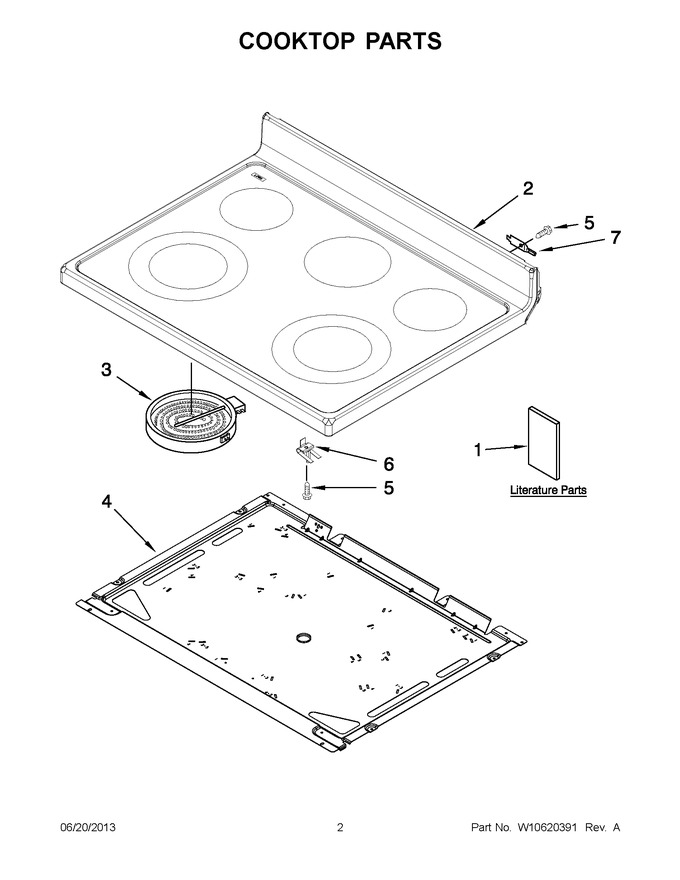

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer & Rack Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10419390 | User Instructions |
|
- | |||||
| 1 | W10403812 | Instructions, Installation |
|
- | |||||
| 1 | 9757143 | Template, Anti Tip (english/french) |
|
- | |||||
| 1 | 9757142 | Template, Anti-tip (english/spanish) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10579182 | Tech Sheet, English |
|
- | |||||
| 1 | W10577062 | Tech Sheet, French |
|
- | |||||
| 2 | W10636009 | Cooktop (white) (Replaces: W10575147) |
|
$ 520.33 | |||||
| 2 | W10575148 | Cooktop (black) |
|
- | |||||
| 3 | W11517959 | Element (1400w) (left Front And Right Front) (Replaces: W10275048) |
|
Immediately | $ 146.68 | ||||
| 3 | W11171119 | Element (1200w) (right Rear And Left Rear) (Replaces: 8273994) |
|
Immediately | $ 225.62 | ||||
| 3 | W11047668 | Element, Warm Zone (center) (Replaces: W10388271) |
|
$ 132.95 | |||||
| 4 | W11728329 | Pan, Radiant Element (Replaces: W10106409) |
|
Immediately | $ 143.49 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 6 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 7 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 |
