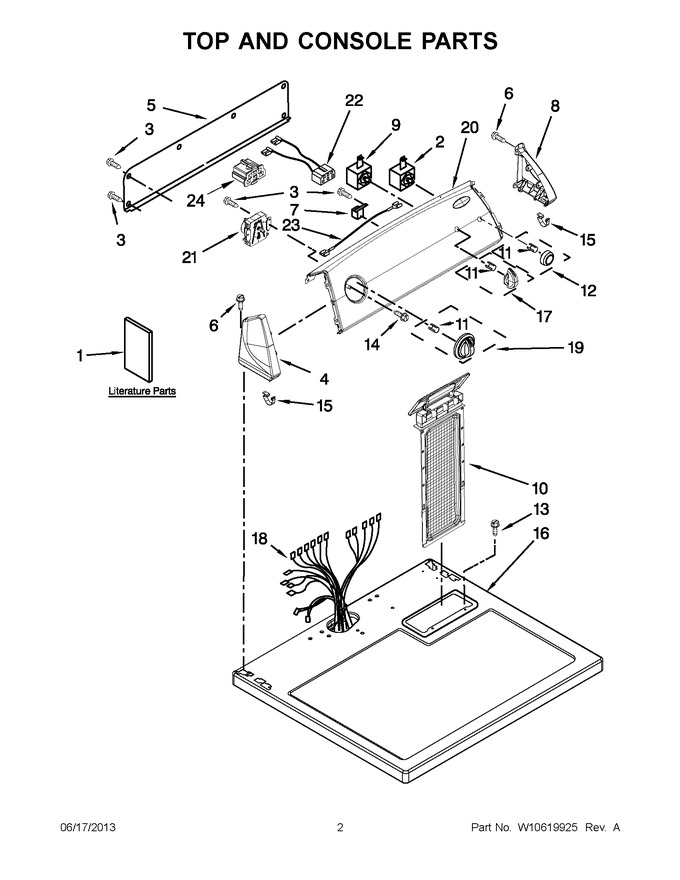

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514188		Instructions, Installation		Appelez-nous	-
1	W10396180		Wiring Diagram		Appelez-nous	-
1	W10454267		Use And Care Guide		Appelez-nous	-
2	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
5	W10103406		Panel, Rear (console)				$ 135.31
6	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
7	3952439		Buzzer, Mini		Appelez-nous	-
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
9	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
10	W11778253		Lint Screen   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WPW10034790		Knob, Push To Start (white/metallic)   (Replaces: W10034790)				$ 57.81
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W10850756		Screw   (Replaces: 8533974)				$ 8.20
15	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	W10034380		Knob, Control (white/metallic)				$ 25.06
18	WPW10386312		Harness, Main   (Replaces: W10386312)				$ 255.86
19	W10034750		Knob, Timer (white/metallic)				$ 28.27
20	WPW10464658		Assembly, Control Panel And Bracket   (Replaces: W10464658)				$ 239.86
21	W10463293		Assembly, Timer (60 Hz.)		Appelez-nous	-
22	8539893		Wire, Jumper (temperature)				$ 19.78
23	W10113080		Wire, Jumper (buzzer)		Appelez-nous	-
24	3347243		Connector, 6-circuit		Appelez-nous	-
