SELECT A DIAGRAM

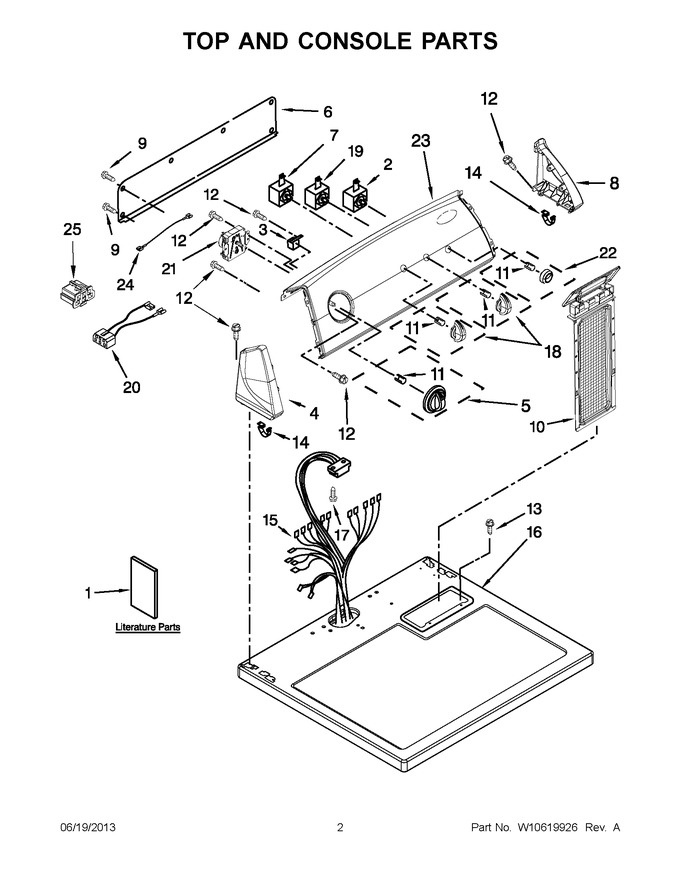

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10514189		Installation Instructions		Appelez-nous	-
1	W10454275		Use & Care Guide		Appelez-nous	-
1	W10513349		Wiring Diagram		Appelez-nous	-
2	WPW10112668		Switch, Push-to-start   (Replaces: W10112668)				$ 128.11
3	3952439		Buzzer, Mini		Appelez-nous	-
4	WP8565957		End Cap (left) (white)   (Replaces: 8566035)				$ 64.76
5	W10034750		Knob, Timer (white/metallic)				$ 28.27
6	W10103406		Panel, Rear (console)				$ 135.31
7	WP3399639		Switch, Temperature   (Replaces: 3399639)			Immediately	$ 131.16
8	WP8565954		End Cap (right) (white)   (Replaces: 8566032)				$ 65.84
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Lint Screen   (Replaces: 8557857)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	W10450284		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
18	W10034380		Knob, Control (white/metallic)				$ 25.06
19	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 152.79
20	W10521801		Wire, Jumper (guard On/off)		Appelez-nous	-
21	WP3979618		Timer, 60 Hz.   (Replaces: 3979618)				$ 385.28
22	WPW10034790		Knob, Push To Start (white/metallic)   (Replaces: W10034790)				$ 57.81
23	W10434962		Assembly, Panel & Bracket (white/metallic)		Appelez-nous	-
24	8539893		Wire, Jumper (temperature)   (Replaces: 3396029)				$ 19.78
25	3347243		Connector, 6-circuit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
