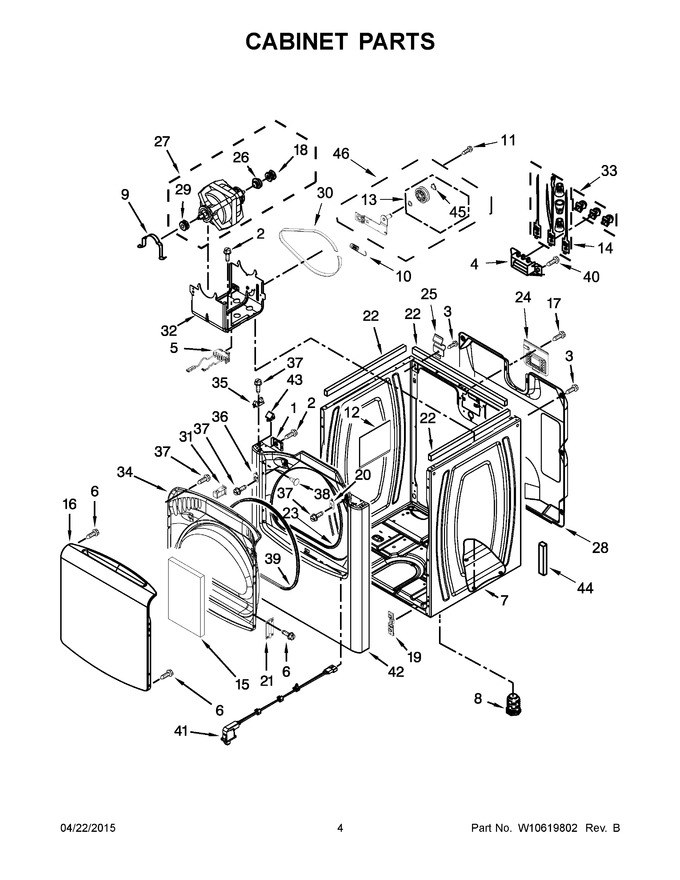

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 2 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 5 | WPW10411937 | Switch, Broken Belt (Replaces: W10411937) |
|
Immediately | $ 32.45 | ||||
| 6 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 7 | W10223154 | Cabinet (white) (Replaces: W10183827) |
|
$ 318.94 | |||||
| 8 | W11025920 | Foot, Dryer (Replaces: W10561321) |
|
Immediately | $ 22.22 | ||||
| 9 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 10 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 11 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 12 | W10123956 | Panel, Dampening |
|
- | |||||
| 13 | 279640 | Assembly, Pulley (Replaces: W10468057) |
|
Immediately | $ 29.26 | ||||
| 14 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 15 | W10448737 | Filler, Door |
|
- | |||||
| 16 | WP8571361 | Door, Outer (white) (Replaces: 8571361) |
|
$ 165.12 | |||||
| 17 | W10850756 | Screw (Replaces: 8533974) |
|
$ 7.38 | |||||
| 18 | WP8547171 | Pulley, Motor (Replaces: 8547171) |
|
$ 134.69 | |||||
| 19 | W10854425 | Clip, Front Panel (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 20 | WPW10111888 | Plug, Strike (Replaces: W10111888) |
|
$ 26.72 | |||||
| 21 | WP8565018 | Hinge, Spring Assembly (white) (Replaces: 8565018) |
|
$ 103.81 | |||||
| 22 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 7.61 | ||||
| 23 | W10044490 | Seal, Front Panel |
|
$ 30.65 | |||||
| 24 | W10110241 | Cover, Terminal Block |
|
$ 43.62 | |||||
| 25 | WP8066217 | Hinge, Top (Replaces: 238088) |
|
$ 7.39 | |||||
| 26 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 27 | WPW10448896 | Assembly, Motor (60 Hertz) (Replaces: W10396036) |
|
Immediately | $ 308.78 | ||||
| 28 | 8558830 | Panel, Rear |
|
$ 139.44 | |||||
| 29 | 8544743 | Pulley, Blower |
|
$ 74.26 | |||||
| 30 | WP8547157 | Belt, Drive (Replaces: 8547157) |
|
Immediately | $ 58.91 | ||||
| 31 | WPW10111905 | Assembly, Door Catch (Replaces: W10111905) |
|
Immediately | $ 6.83 | ||||
| 32 | 8547158 | Bracket, Motor |
|
$ 65.31 | |||||
| 33 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 34 | 8571356 | Door, Inner |
|
$ 86.30 | |||||
| 35 | WP8568303 | Locator, Snap-down (Replaces: 8568303) |
|
$ 7.15 | |||||
| 36 | W10295405 | Assembly, Strike And Plate (Replaces: W10111906) |
|
$ 103.58 | |||||
| 37 | WP3400805 | Screw (zinc) (Replaces: 3400805) |
|
$ 6.80 | |||||
| 38 | WP3404413 | Plug, Hole (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 39 | W10239307 | Seal, Door (Replaces: W10221653) |
|
$ 127.14 | |||||
| 40 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 41 | WPW10350907 | Assembly, Door Switch (Replaces: W10350907) |
|
$ 81.14 | |||||
| 42 | W10594753 | Panel, Front (white) |
|
$ 163.46 | |||||
| 43 | WP8576625 | Lock, Top Front (Replaces: 8576625) |
|
$ 6.84 | |||||
| 44 | 3350013 | Foam |
|
- | |||||
| 45 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.71 | ||||
| 46 | WPW10547292 | Assembly, Idler (Replaces: W10547292) |
|
Immediately | $ 39.58 |
