01 - Cooktop Parts

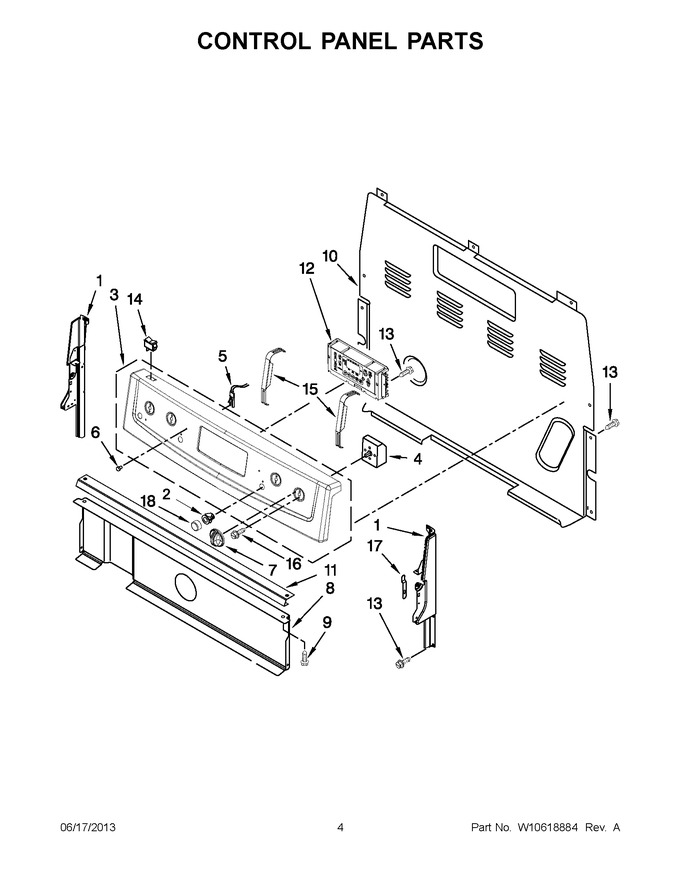

02 - Control Panel Parts
03 - Chassis Parts
04 - Drawer And Broiler Parts
05 - Door Parts
06 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left Hand)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1 | W11219664 | Endcap (black (left Hand)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 1 | W11219370 | Endcap (white (right Hand)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 1 | W11219665 | Endcap (black (right Hand)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 2 | W10217760 | Bezel, Keep Warm (white) |
|
$ 23.32 | |||||
| 2 | W10217758 | Bezel, Keep Warm (black) |
|
$ 25.79 | |||||
| 3 | W10572600 | Panel, Control (white) |
|
- | |||||
| 3 | W10572606 | Panel, Control (stainless) |
|
- | |||||
| 3 | W10572603 | Panel, Control (black) |
|
- | |||||
| 4 | WP3149400 | Switch, Infinite (orange) (right Front) (Replaces: 3148954) |
|
Immediately | $ 81.46 | ||||
| 4 | 5500-287 | Switch, Infinite (left Rear & Right Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 4 | WPW10434452 | Switch, Infinite Dual (left Front) (Replaces: W10434452) |
|
Immediately | $ 126.76 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 91.76 | ||||
| 6 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 7 | WPW10490038 | Knob, Infinite (black) (Replaces: W10490038) |
|
$ 19.39 | |||||
| 7 | WPW10490037 | Knob, Infinite (white) (Replaces: W10490037) |
|
Immediately | $ 6.80 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | WPW10502613 | Control, Range (stainless) (Replaces: W10424888) |
|
$ 474.08 | |||||
| 12 | WPW10502615 | Control, Range (black) (Replaces: W10348631) |
|
$ 403.70 | |||||
| 12 | WPW10502614 | Control, Range (white) (Replaces: W10348632) |
|
$ 345.65 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | 3149360 | Switch, Rocker (white) |
|
$ 89.01 | |||||
| 14 | WP4314961 | Switch, Rocker (black) (Replaces: 3148564) |
|
$ 84.56 | |||||
| 15 | W11230932 | Bracket, Control (Replaces: W10324410) |
|
Immediately | $ 76.33 | ||||
| 16 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 17 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 18 | 9758491 | Button, Keep Warm (black) |
|
$ 17.77 | |||||
| 18 | 9757492 | Button, Keep Warm (white) |
|
$ 86.41 |
