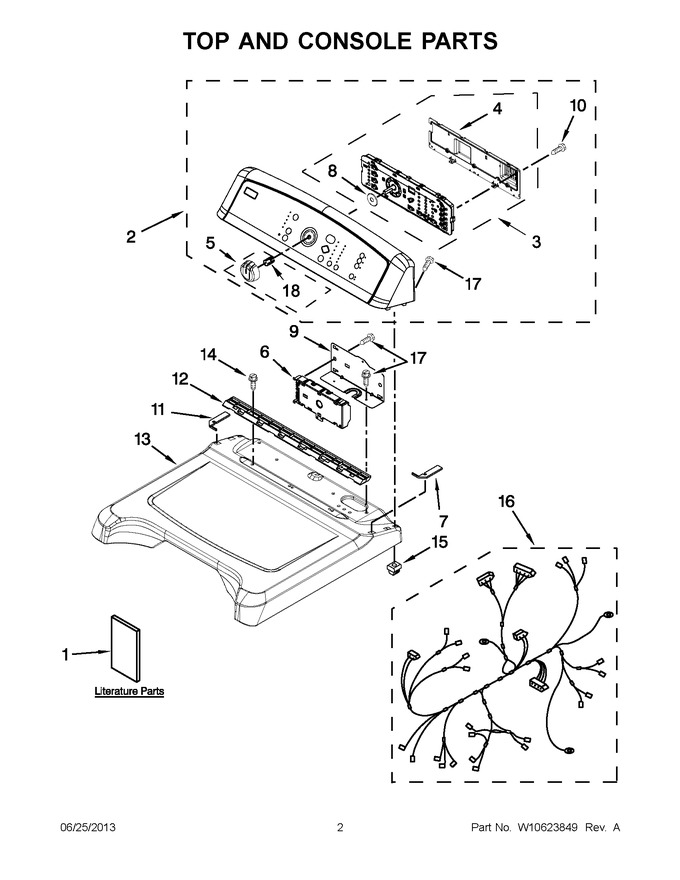

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Burner Assembly


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562334		Guide, Use & Care		Appelez-nous	-
1	W10562336		Instructions, Installation		Appelez-nous	-
1	W10393006		Sheet, Tech		Appelez-nous	-
2	WPW10562317		Console Assembly (white)   (Replaces: W10562317)				$ 454.88
3	WPW10388672		User Interface   (Replaces: W10388672)				$ 339.48
4	W10051124		Cover, Ui Rear				$ 263.67
5	WPW10571098		Assembly, Control Knob (grey)   (Replaces: W10571098)				$ 61.93
6	WPW10536008		Control, Electronic   (Replaces: W10536008)			Immediately	$ 261.04
7	W10219694		Seal, Top (right)		Appelez-nous	-
8	8572039		Seal, User Interface		Appelez-nous	-
9	8563853		Bracket, Machine Controller		Appelez-nous	-
10	WP4449745		Screw   (Replaces: W10003770)				$ 7.98
11	W10219695		Seal, Top (left)		Appelez-nous	-
12	8558863		Bracket, Console				$ 33.78
13	W10223157		Top (white)				$ 159.40
14	WP33001882		Screw   (Replaces: 337686)				$ 83.71
15	W10112673		Clip, Console				$ 9.75
16	W10393460		Harness, Wiring Main		Appelez-nous	-
17	W10131402		Screw		Appelez-nous	-
18	W10153920		Clip, Spring		Appelez-nous	-
