SELECT A DIAGRAM

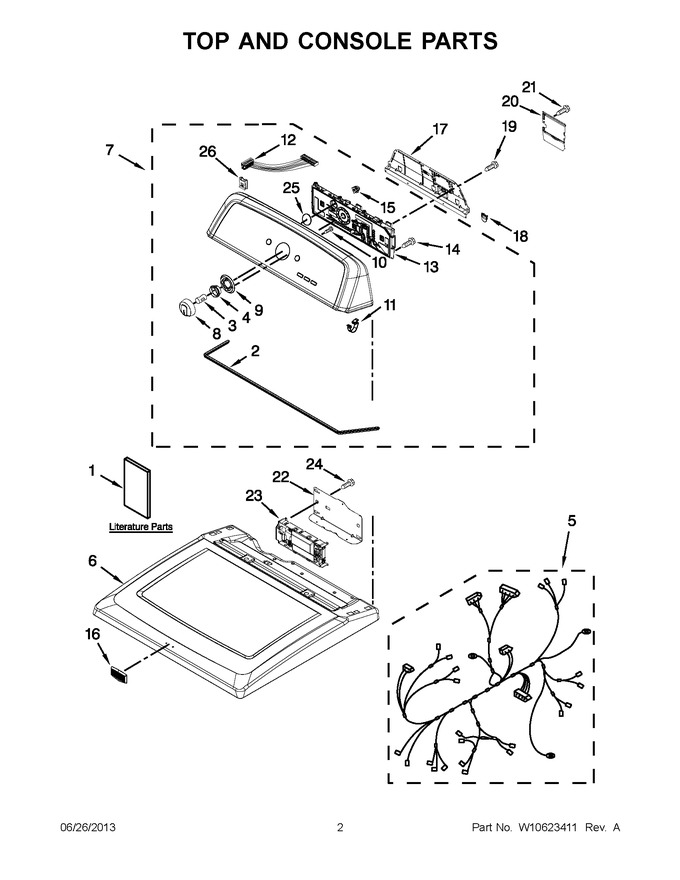

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10259284		Wiring Diagram		Appelez-nous	-
1	W10096989		Guide, Use & Care		Appelez-nous	-
1	W10514185		Installation Instructions		Appelez-nous	-
1	W10417013		Tech Sheet		Appelez-nous	-
2	W10280079		Seal, Console		Appelez-nous	-
3	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
4	W10326923		Spacer, Knob		Appelez-nous	-
5	W10253982		Harness, Wiring		Appelez-nous	-
6	WPW10268730		Top (white)   (Replaces: W10268730)				$ 345.86
7	W10293247		Assembly, Console (white)				$ 328.53
8	WPW10251381		Assembly, Control Knob (silver)   (Replaces: W10251381)				$ 58.63
9	W10305134		Bezel, Cycle Trim				$ 26.37
10	3196172		Screw			Immediately	$ 13.47
11	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
12	W10285494		Cable, User Interface		Appelez-nous	-
13	WPW10272643		Assembly, User Interface   (Replaces: W10272643)				$ 337.21
14	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 8.18
15	W10274524		Tensioner, Fascia		Appelez-nous	-
16	W10492808		Badge				$ 59.82
17	W10550615		Panel, Rear Console				$ 116.83
18	W10279552		Plug, Upper Rear Panel		Appelez-nous	-
19	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
20	W10338363		Cover, Terminal Block		Appelez-nous	-
21	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
22	W10271580		Bracket, Motor Control		Appelez-nous	-
23	WPW10317638		Control, Electronic   (Replaces: W10317638)				$ 344.65
24	WP488627		Screw   (Replaces: 342055)				$ 8.11
25	W10323092		Seal, User Interface		Appelez-nous	-
26	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59

    View Diagram in Separate Window       Print Part List
