View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Top And Cabinet Parts
02 - Door Parts

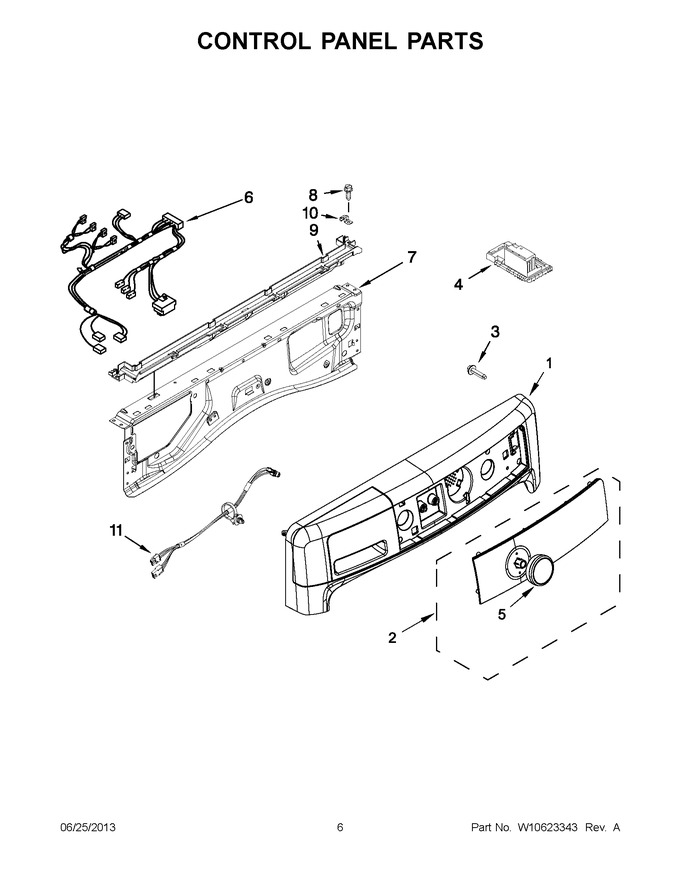

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10469293 | Assembly, Console (granite) |
|
$ 242.50 | |||||
| 1 | W10469292 | Assembly, Console (white) |
|
$ 249.74 | |||||
| 2 | W10587511 | Assembly, Iml (granite) |
|
- | |||||
| 2 | W10587509 | Assembly, Iml (white) |
|
- | |||||
| 3 | W10489172 | Screw |
|
$ 11.41 | |||||
| 4 | W10455318 | Control Unit, Appliance |
|
- | |||||
| 5 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 51.37 | |||||
| 6 | W10602912 | Harness, Main (upper) |
|
- | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 166.23 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.83 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 86.61 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 8.72 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 27.18 |
