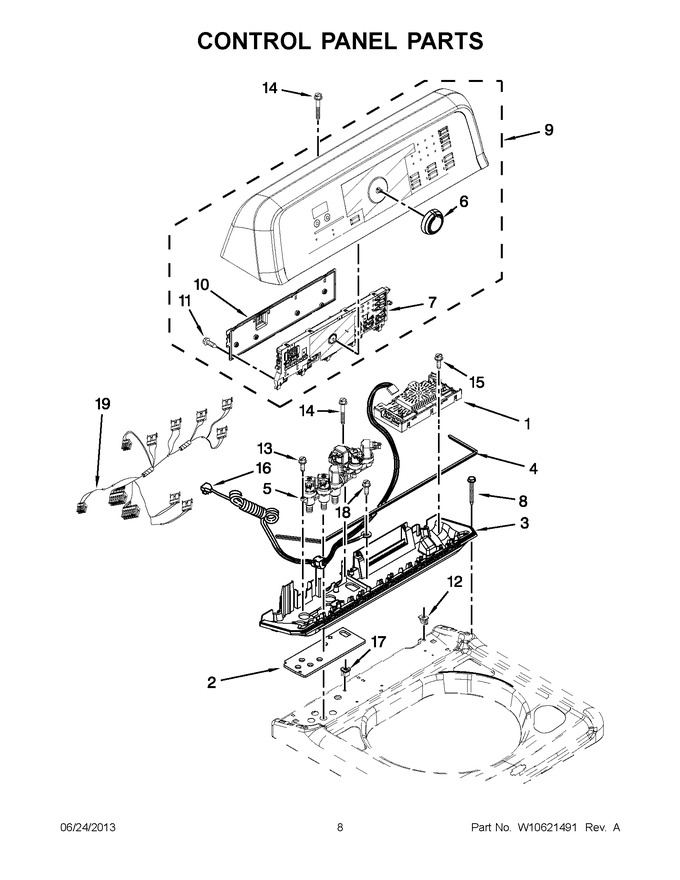

01 - Top And Cabinet Parts
02 - Motor, Basket And Tub Parts
03 - Pump Parts
04 - Control Panel Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10563021 | Control Unit Assembly, Machine And Motor |
|
- | |||||
| 2 | W10141695 | Gasket, Valve Tray |
|
$ 36.82 | |||||
| 3 | WPW10356745 | Tray Assembly, Console (includes Items 2 And 4) (white) (Replaces: W10356745) |
|
$ 182.81 | |||||
| 3 | W10356746 | Tray Assembly, Console (includes Items 2 And 4) (gray) |
|
- | |||||
| 4 | W10141693 | Gasket, Console/tray |
|
- | |||||
| 5 | W10853723 | Valve, Log (Replaces: W10342320) |
|
Immediately | $ 121.66 | ||||
| 6 | WPW10571098 | Assembly, Control Knob (grey) (Replaces: W10571098) |
|
$ 61.93 | |||||
| 7 | W10426809 | User Interface |
|
$ 238.99 | |||||
| 8 | W10004990 | Screw |
|
- | |||||
| 9 | W10550337 | Console (granite) |
|
$ 405.21 | |||||
| 9 | W10550336 | Console (white) |
|
$ 343.38 | |||||
| 10 | W10051124 | Cover, Ui Rear |
|
$ 263.67 | |||||
| 11 | WP4449745 | Screw (Replaces: W10003770) |
|
$ 7.98 | |||||
| 12 | W10022060 | Nut, Push In |
|
- | |||||
| 13 | WPW10052600 | Screw (Replaces: W10052600) |
|
$ 7.30 | |||||
| 14 | 8565324 | Screw |
|
$ 14.05 | |||||
| 15 | WP8281136 | Screw (Replaces: 8281136) |
|
$ 7.30 | |||||
| 16 | W10761002 | Cord, Power (Replaces: W10420367) |
|
$ 148.13 | |||||
| 17 | 98460 | Nut, Push-in |
|
$ 12.07 | |||||
| 18 | WP3351614 | Screw (Replaces: 3351614) |
|
Immediately | $ 7.30 | ||||
| 19 | WPW10404419 | Upper Harness (Replaces: W10404419) |
|
$ 77.97 |
