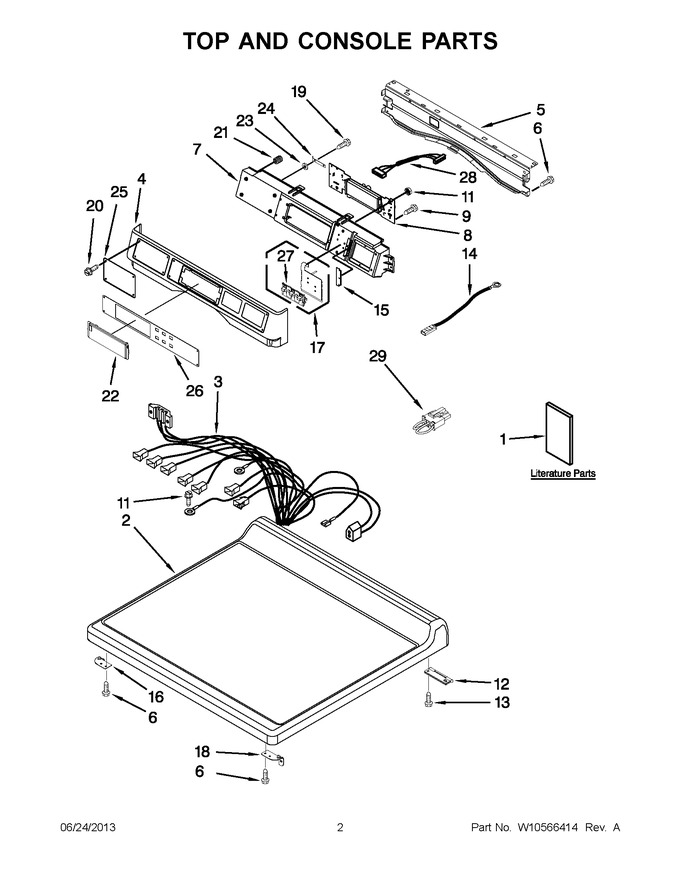

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10469829 Burner Assembly Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10306604		Tech Sheet		Appelez-nous	-
1	W10310116		User Instruction		Appelez-nous	-
1	W10310126		Installation Instruction		Appelez-nous	-
2	W11622909		Top (white)   (Replaces: W10137410)		Appelez-nous	-
3	W10555110		Harness, Main		Appelez-nous	-
4	W10779120		Console (outer)   (Replaces: W10137459)				$ 138.64
5	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 189.77
6	WP488627		Screw   (Replaces: 342055)				$ 8.11
7	W11790400		Console (inner)   (Replaces: W10137427)		Appelez-nous	-
8	WPW10166346		User-interface Assembly   (Replaces: W10166346)				$ 328.95
9	489136		Screw				$ 10.80
11	WPW10139046		Nut   (Replaces: W10139046)				$ 9.23
12	WP8565018		Hinge & Pin Assembly (white)   (Replaces: 8565018)				$ 115.34
13	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
14	W10257051		Jumper, Static		Appelez-nous	-
15	W10187276		Seal, Console		Appelez-nous	-
16	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
17	WPW10135255		Switch, Membrane & Backer Plate   (Replaces: W10135255)				$ 219.41
18	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
19	WP488234		Screw   (Replaces: 488234)				$ 7.08
20	WPW10137457		Screw   (Replaces: W10137457)				$ 7.85
21	WPW10189313		Insert   (Replaces: W10189313)				$ 9.23
22	W11637765		Cover, Display   (Replaces: W10267645)				$ 69.59
23	W10189075		Washer, Brass				$ 19.13
24	W10532923		Ground-jumper, Tab				$ 15.12
25	W10348373		Fascia-dispenser		Appelez-nous	-
26	W10348376		Fascia-console		Appelez-nous	-
27	W10803340		Push Button   (Replaces: W10137455)				$ 123.24
28	W10166307		Harness, Communication				$ 41.32
29	W11129439		Jumper, Switch Service/vault   (Replaces: W10133282)				$ 17.66

    View Diagram in Separate Window       Print Part List
