SELECT A DIAGRAM

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

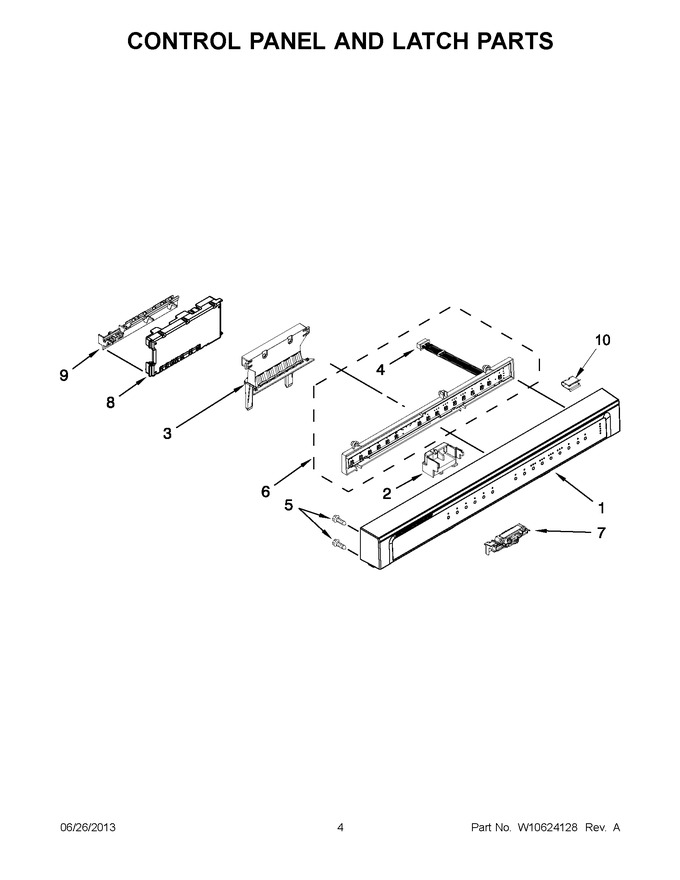

1	W10350425		Console Assembly (black)   (Replaces: W10505586)				$ 287.92
1	W10350426		Console Assembly (white)   (Replaces: W10505587)				$ 101.35
1	W10350428		Console Assembly (silver)   (Replaces: W10505588)				$ 370.18
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	W10475758		Handle Pocket (white)   (Replaces: W10475759)				$ 20.70
3	W10475758		Handle Pocket (black)				$ 20.70
4	W10552538		Jumper, Wire		Appelez-nous	-
5	WPW10177098		Screw   (Replaces: W10177098)			Immediately	$ 8.02
6	W10552545		Housing Assembly, User Interface				$ 256.63
7	W10619006		Latch Assembly (includes Switch)   (Replaces: W10550100)			Immediately	$ 39.09
8	W10597045		Control, Electronic   (Replaces: W10539783)			Immediately	$ 194.91
9	WPW10194937		Brace, Connector   (Replaces: W10194937)				$ 30.56
10	W10815836		Clip, Panel   (Replaces: W10485367)				$ 8.25

    View Diagram in Separate Window       Print Part List
