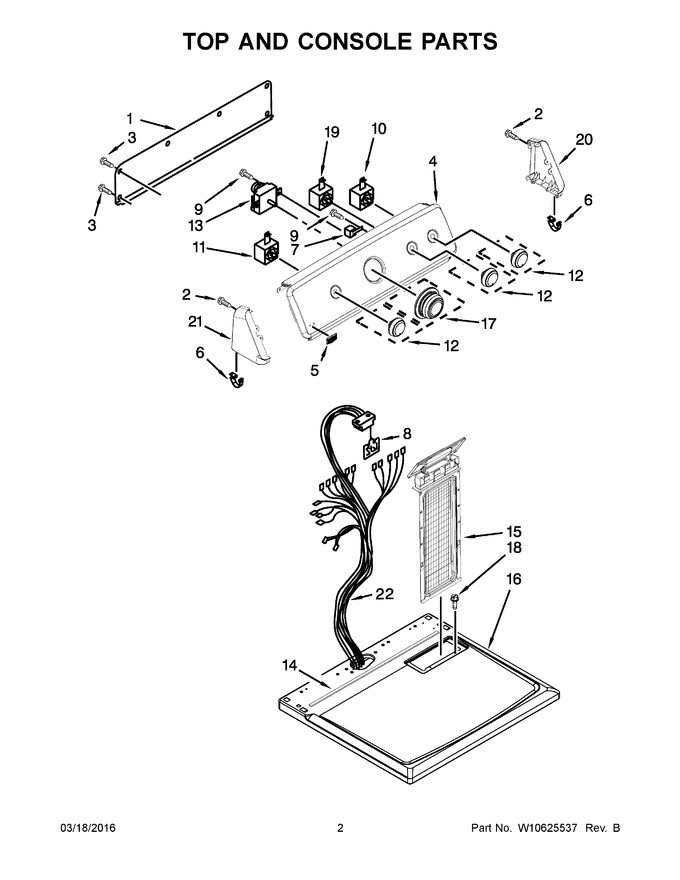

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10103406		Panel, Rear (console)				$ 135.31
2	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W10557258		Assembly, Panel & Bracket (white)				$ 223.18
5	W10199708		Badge				$ 53.28
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
8	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
9	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
10	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
11	WP8578354		Switch, Rotary Temperature   (Replaces: 8578354)			Immediately	$ 173.03
12	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
13	WP8566184		Assembly, Timer (60 Hz.)   (Replaces: 8566184)			Immediately	$ 277.09
14	W10316616		Seal, Foam				$ 27.79
15	W11778253		Screen, Lint   (Replaces: 8565972)			Immediately	$ 54.63
16	WPW10225059		Top (white)   (Replaces: W10225059)				$ 250.69
17	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
18	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
19	WP3405156		Switch, Roatary (2 Pos)   (Replaces: 3405156)				$ 152.79
20	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 74.72
21	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 74.39
22	W10565802		Harness, Main Wiring		Appelez-nous	-
