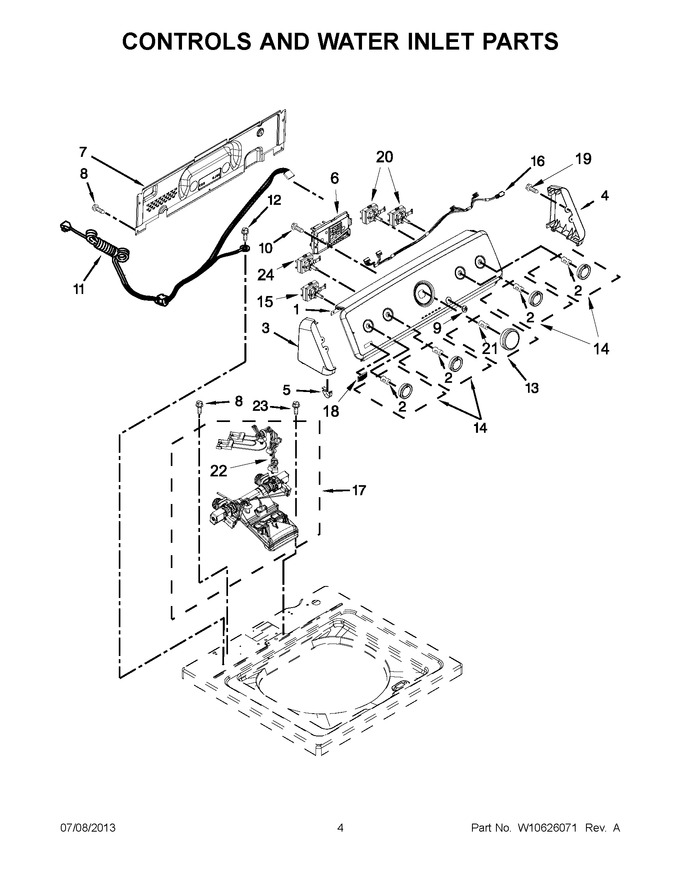

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10468418		Panel, Console   (Replaces: W10468418)				$ 193.99
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
3	WPW10193824		End Cap (left) (white)   (Replaces: W10193824)				$ 74.39
4	WPW10193821		End Cap (right) (white)   (Replaces: W10193821)				$ 74.72
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
6	W10582043		Control Unit Assembly, Machine And Motor				$ 272.62
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 8.40
9	W11164083		Push Button, Start   (Replaces: W10584360)				$ 74.87
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	WPW10525194		Cord, Power   (Replaces: W10525194)				$ 163.41
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
15	WPW10285517		Switch, Rotary Encoder (3 Position)   (Replaces: W10285517)				$ 135.86
16	W10291177		Harness, Upper (temperature)				$ 152.67
17	WPW10683603		Inlet Assembly, Water   (Replaces: W10501149)			Immediately	$ 94.00
18	W10199708		Badge				$ 53.28
19	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
21	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
22	W10876654		Harness, Valve   (Replaces: W10423127)				$ 194.92
23	WP8281163		Screw (stainless)   (Replaces: 8281163)			Immediately	$ 10.70
24	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 158.12

    View Diagram in Separate Window       Print Part List
