SELECT A DIAGRAM

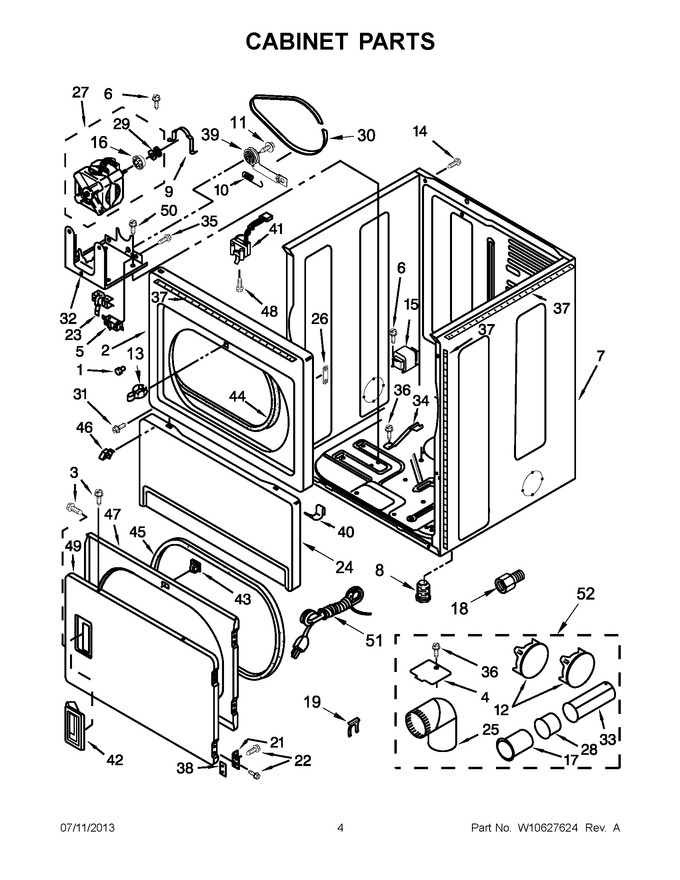

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10096909 Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	693152		Bumper				$ 10.36
2	W10193554		Panel, Front (white)		Appelez-nous	-
3	WP489463		Screw   (Replaces: 489463)				$ 7.43
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.47
5	WP8318457		Switch, Broken Belt   (Replaces: 8318457)				$ 39.77
6	W11676450		Screw   (Replaces: 3400000)				$ 13.28
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 396.15
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 68.02
13	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
14	W10850756		Screw   (Replaces: 8533974)				$ 7.38
15	W10851673		Transformer   (Replaces: 3977633)				$ 375.72
16	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
17	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 86.36
18	WP8316063		Adapter, Gas Inlet   (Replaces: 8316063)				$ 131.32
19	W11712577		Clip, Strain Relief   (Replaces: 694415)			Immediately	$ 6.99
20	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.71
21	WPW10279703		Assembly, Hinge And Pin   (Replaces: W10279703)				$ 68.25
22	WP488627		Screw   (Replaces: 342055)				$ 7.30
23	W10854043		Lever, Switch   (Replaces: W10083220)				$ 27.41
24	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 225.23
25	WPW10416072		Elbow   (Replaces: 49026)				$ 25.34
26	W10191265		Plug, Hinge Hole (white)				$ 41.84
27	W10416573		Assembly, Motor 50 Hz.   (Replaces: W10289661)				$ 225.72
28	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 74.61
29	3402548		Pulley, Motor (50 Hz)		Appelez-nous	-
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 29.53
31	W10891954		Screw   (Replaces: 8281212)		Appelez-nous	-
32	WP3387118		Bracket, Motor   (Replaces: 3387118)				$ 126.24
33	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 83.92
34	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
35	3400934		Assembly, Screw And Insulator		Appelez-nous	-
36	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
37	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 35.74
38	WP3390902		Clip, Door Hinge   (Replaces: 3390902)				$ 10.50
39	W10837240		Assembly, Idler   (Replaces: W10547290)			Immediately	$ 32.20
40	WPW10291934		Clip   (Replaces: W10291934)				$ 7.33
41	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 56.37
42	3389522		Handle, Door				$ 73.62
43	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP3390735		Seal, Door   (Replaces: 3390735)				$ 123.42
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: W10323061)				$ 271.23
48	WP3395530		Screw   (Replaces: 697773)				$ 7.71
49	W11663440		Door, Front   (Replaces: W10322546)				$ 245.11
50	3400097		Screw		Appelez-nous	-
51	WPW10476824		Cord, Power   (Replaces: W10476824)				$ 24.52
52	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (midnight Grey)   (Replaces: W10186596)			Immediately	$ 76.75
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	W10446855		Cord, Power (10a Cord Lock)		Appelez-nous	-
NI	WPW10476822		Cord, Power (10a Cord Adapter (european))   (Replaces: W10476822)				$ 72.81
NI	WPW10476820		Cord, Power (10a Cord Adapter (british))   (Replaces: W10476820)				$ 25.24
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70

    View Diagram in Separate Window       Print Part List
