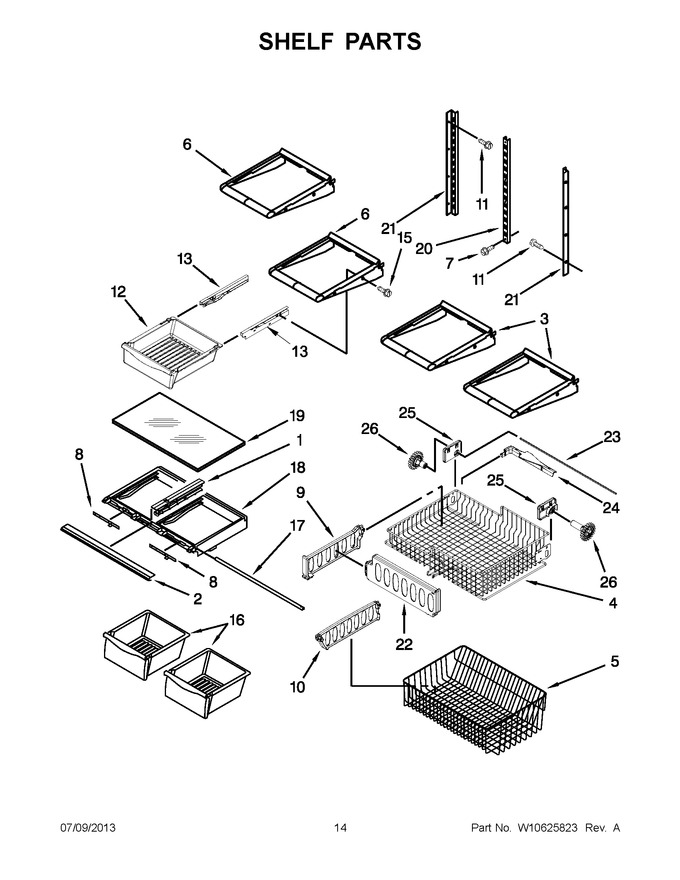

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 12530701N) |
|
Immediately | $ 106.61 | ||||
| 2 | WPW10231482 | Trim, Crisper (Replaces: W10231482) |
|
$ 106.83 | |||||
| 3 | W11402523 | Shelf (Replaces: 12463509V) |
|
Immediately | $ 209.21 | ||||
| 4 | W10348238 | Basket, Upper |
|
$ 205.32 | |||||
| 5 | WPW10503183 | Basket, Freezer (lower) (Replaces: W10503183) |
|
Immediately | $ 224.42 | ||||
| 6 | W11402521 | Shelf, Glide Out (Replaces: 12463310) |
|
$ 208.42 | |||||
| 7 | W10215666 | Screw |
|
$ 8.58 | |||||
| 8 | WP67005864 | Slide, Humidity Control (Replaces: 12530805SP) |
|
Immediately | $ 7.38 | ||||
| 9 | W10241046 | Divider, Upper |
|
Immediately | $ 26.27 | ||||
| 10 | W10847995 | Divider, Lower Basket (Replaces: W10146440) |
|
$ 83.23 | |||||
| 11 | 67006425 | Screw (Replaces: 12990513) |
|
Immediately | $ 6.57 | ||||
| 12 | WP67001314 | Pan, Deli (Replaces: 12656404V) |
|
$ 146.79 | |||||
| 13 | WP67001053 | Glide, Right Hand (Replaces: 12656602V) |
|
Immediately | $ 8.32 | ||||
| 13 | WP67001054 | Glide, Left Hand (Replaces: 12656601V) |
|
Immediately | $ 7.94 | ||||
| 15 | W11233072 | Screw (Replaces: 12990302V) |
|
Immediately | $ 13.25 | ||||
| 16 | WP67002633 | Pan, Crisper (Replaces: 12530505N) |
|
Immediately | $ 155.96 | ||||
| 17 | WP12227303WD | Brace, Crisper Cover (Replaces: 12227303WD) |
|
$ 100.13 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: W10568041) |
|
Immediately | $ 142.11 | ||||
| 19 | WP67006878 | Glass, Crisper (Replaces: 12204822N) |
|
Immediately | $ 201.12 | ||||
| 20 | W10273463 | Ladder, Center |
|
$ 26.65 | |||||
| 21 | W10251969 | Ladder, Side |
|
$ 28.30 | |||||
| 22 | W10311695 | Divider, Upper |
|
$ 27.18 | |||||
| 23 | W10802339 | Shaft-rack (Replaces: 12812905WD) |
|
$ 93.75 | |||||
| 24 | W10149389 | Lift, Bail Arm (Replaces: W10149389N) |
|
$ 83.39 | |||||
| 25 | W10348260 | Mount, Gear (right Hand) |
|
$ 80.91 | |||||
| 25 | W10348259 | Mount, Gear (left Hand) |
|
$ 80.88 | |||||
| 26 | WPW10474716 | Gear (left Hand) (Replaces: W10474716) |
|
Immediately | $ 29.18 | ||||
| 26 | WPW10474715 | Gear (right Hand) (Replaces: W10474715) |
|
Immediately | $ 29.48 |
