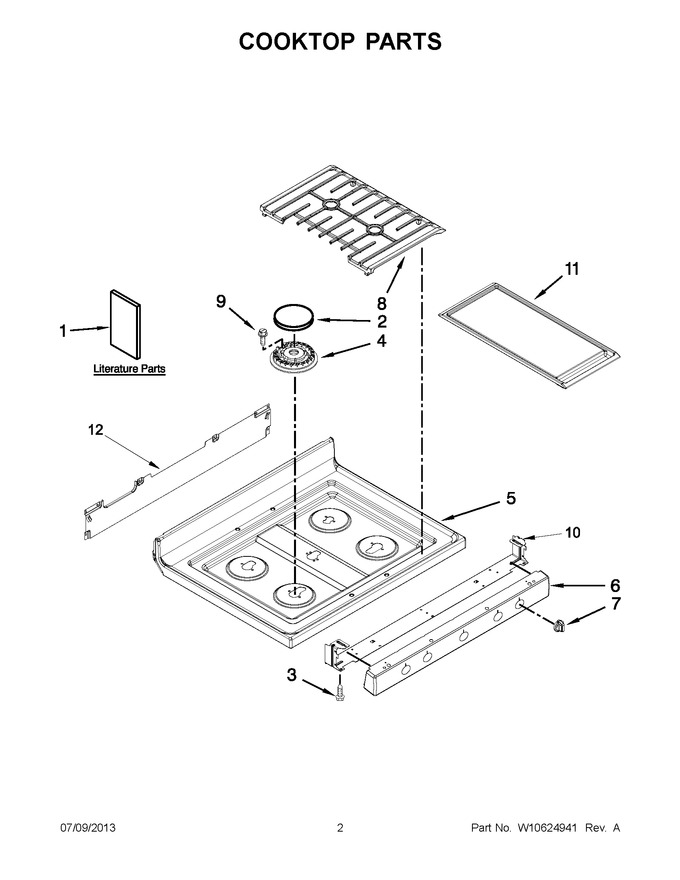

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10553363 | Instructions, Installation |
|
- | |||||
| 1 | W10524723 | User Instructions |
|
- | |||||
| 1 | W10538799 | Tech Sheet (english) |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | W10400066 | Guide, Quick Start (english) |
|
- | |||||
| 2 | WPW10183374 | Burner Cap Set (black) (Replaces: W10183374) |
|
$ 200.18 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | WPW10515454 | Burner Head, Semi (9.5 K) (Replaces: W10515454) |
|
$ 115.74 | |||||
| 4 | WPW10515453 | Burner Head, Auxi (5k) (Replaces: W10515453) |
|
$ 99.29 | |||||
| 4 | WPW10515455 | Burner Head, Ultra Rapid (15k) (Replaces: W10515455) |
|
$ 112.47 | |||||
| 5 | W11241183 | Cooktop (black) (Replaces: W10294800) |
|
$ 570.28 | |||||
| 6 | W10330065 | Panel, Manifold (stainless Steel) |
|
$ 131.75 | |||||
| 7 | WPW10324398 | Knob (stainless Steel) (Replaces: W10324398) |
|
$ 209.11 | |||||
| 8 | W10509553 | Grate, Set (black) |
|
$ 132.51 | |||||
| 9 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 10 | W10534174 | Bracket, Manifold |
|
- | |||||
| 11 | W10347386A | Griddle (Replaces: W10347386) |
|
$ 101.08 | |||||
| 12 | W10530070 | Bracket, Rear Gas Cooktop |
|
- |
