SELECT A DIAGRAM

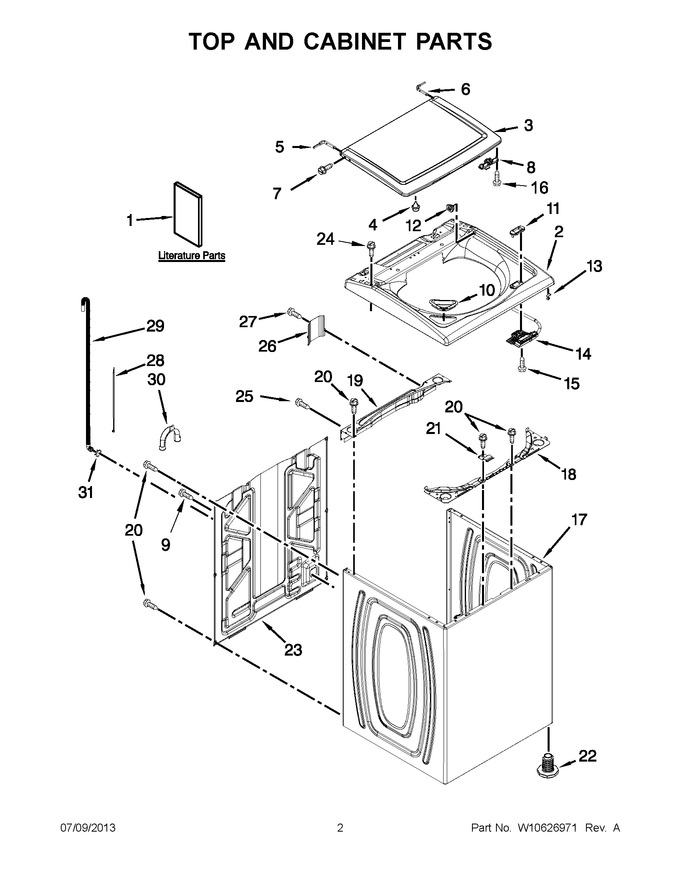

01 - Top And Cabinet Parts
02 - Console And Dispenser Parts
03 - Basket And Tub Parts
04 - Gearcase, Motor And Pump Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10455762 | Installation Instructions |
|
- | |||||
| 1 | W10063002 | Energy Guide |
|
- | |||||
| 1 | W10468342 | Tech Sheet |
|
- | |||||
| 1 | W10560169 | Owners Manual |
|
- | |||||
| 2 | WPW10246376 | Top (white) (Replaces: W10246376) |
|
$ 324.59 | |||||
| 3 | WPW10270529 | Lid And Bumper Assembly (white) (Replaces: W10270529) |
|
$ 348.41 | |||||
| 4 | WP9724509 | Bumper, Lid (Replaces: 9724509) |
|
Immediately | $ 7.50 | ||||
| 5 | W10295775 | Hinge, Wire (l.h.) |
|
$ 20.64 | |||||
| 6 | W10569655 | Hinge Wire (r.h.) (Replaces: W10294031) |
|
$ 21.59 | |||||
| 7 | W11404293 | Screw (Replaces: W10339706) |
|
Immediately | $ 13.27 | ||||
| 8 | WPW10240513 | Strike, Lid Lock (white) (Replaces: W10240513) |
|
Immediately | $ 35.61 | ||||
| 9 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 10 | W10854969 | Dispenser, Bleach (white) (Replaces: W10240977) |
|
$ 98.91 | |||||
| 11 | WPW10392041 | Bezel, Lid Lock (white) (Replaces: W10392041) |
|
Immediately | $ 7.20 | ||||
| 12 | W10293230 | Bearing, Lid Hinge (right) |
|
$ 15.16 | |||||
| 12 | W10293272 | Bearing, Lid Hinge (left) |
|
$ 12.86 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 10.70 | |||||
| 14 | W10404050 | Latch, Lid Lock Assembly (Replaces: W10238287) |
|
Immediately | $ 73.69 | ||||
| 15 | WP8281163 | Screw (stainless) (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 16 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 6.80 | ||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 433.61 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W10215098) |
|
$ 71.81 | |||||
| 19 | W11712680 | Brace, Cabinet Top ? Rear (Replaces: W10512626) |
|
$ 93.49 | |||||
| 20 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 21 | WPW10248088 | Lock, Top (Replaces: W10248088) |
|
$ 16.95 | |||||
| 22 | W11213957 | Foot Assembly, Leveling (Replaces: W10556332) |
|
Immediately | $ 12.82 | ||||
| 23 | W11486091 | Panel Rear (Replaces: W10250884) |
|
Immediately | $ 294.95 | ||||
| 24 | W11700520 | Screw (Replaces: 3400061) |
|
$ 12.85 | |||||
| 25 | WP489128 | Screw (Replaces: W10142728) |
|
$ 10.26 | |||||
| 26 | W10676061 | Cover, Harness (Replaces: W10215139) |
|
$ 33.09 | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 28 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 7.47 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W10221546) |
|
Immediately | $ 28.86 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 75.16 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 |
