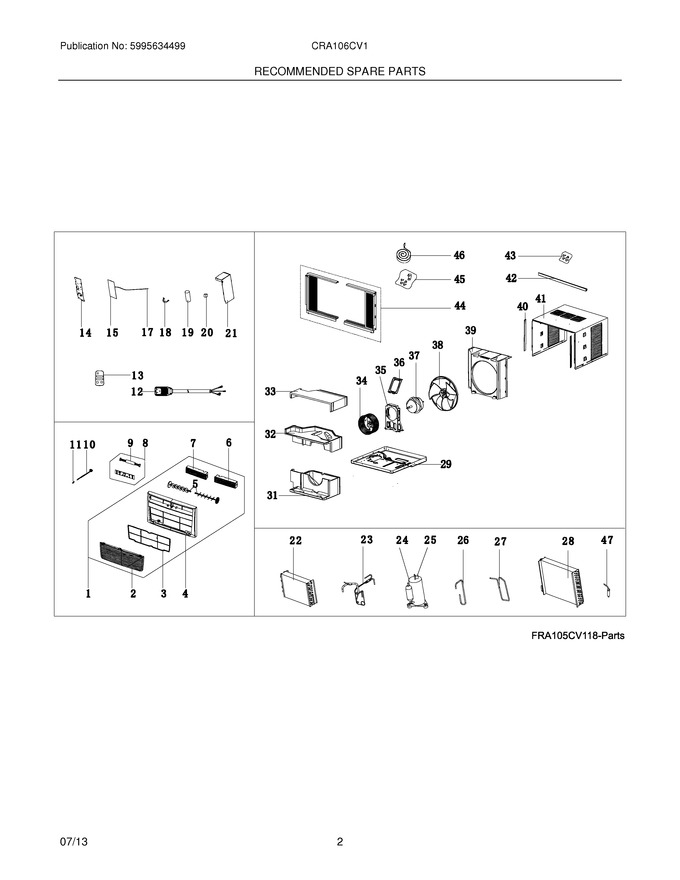

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304476793 | Panel,front Grille,tilt-out, |
|
$ 33.08 | |||||
| 4 | 5304476849 | Frame,front Assembly |
|
$ 36.14 | |||||
| 14 | 5304476182 | Cover,control Box |
|
- | |||||
| 18 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 21 | 5304476225 | Control Box |
|
- | |||||
| 29 | 5304485966 | Base,unit Chassis |
|
- | |||||
| 31 | 5304485967 | Scroll,blower Housing ,bottom |
|
- | |||||
| 32 | 5304485968 | Scroll,blower Housing ,middle |
|
- | |||||
| 33 | 5304485969 | Scroll,blower Housing ,top |
|
- | |||||
| 35 | 5304476194 | Support,motor Mount ,left |
|
- | |||||
| 36 | 5304476195 | Support,motor Mount ,right |
|
- | |||||
| 39 | 5304487223 | Shroud,condenser Fan |
|
- | |||||
| 40 | 5304476197 | Retainer,shutter ,cabinet Sides |
|
$ 9.87 | |||||
| 41 | 5304476198 | Cabinet,wrapper/sleeve |
|
- | |||||
| 42 | 5304476843 | Rail,shutter Track ,top |
|
- | |||||
| 43 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 44 | 5304476200 | Window Filler Kit,slider Panels ,accordion |
|
$ 111.99 | |||||
| 45 | 5304491953 | Hardware,mounting ,screws/locks |
|
$ 19.52 | |||||
| 46 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F1 | 5304476848 | Front Assembly,complete Panel |
|
$ 140.75 | |||||
| F10 | 5304476178 | Door,vent Control ,with Lever |
|
- | |||||
| F11 | 5304520877 | Sleeve,vent Door Assy ,guide (Replaces: 5304476179) |
|
- | |||||
| F12 | 5304476180 | Power Cord,electric ,lcdi |
|
$ 211.10 | |||||
| F13 | 5304501878 | Remote Control,transmitter (Replaces: 5304476851) |
|
$ 102.58 | |||||
| F15 | 5304487534 | Pc Board,main ,control/power |
|
- | |||||
| F17 | 5304504724 | Sensor,ambient Temp ,thermistor (Replaces: 5304487548) |
|
$ 19.85 | |||||
| F19 | 5304471294 | Capacitor |
|
- | |||||
| F20 | 5304472559 | Ionizer,anion Generator |
|
- | |||||
| F22 | 5304485964 | Evaporator,with ,capillary Tube |
|
- | |||||
| F23 | 5304485965 | Tube,capillary |
|
- | |||||
| F24 | 5304489723 | Compressor,with Overload |
|
$ 576.45 | |||||
| F25 | 5304491973 | ยท Overload Protector,compressor |
|
- | |||||
| F27 | 5304476187 | Tube,discharge |
|
- | |||||
| F28 | 5304476233 | Condenser |
|
$ 441.00 | |||||
| F3 | 5304535830 | Filter,air ,plastic Frame (Replaces: 5304476794) |
|
$ 7.39 | |||||
| F34 | 5304485443 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F37 | 5304485973 | Motor,fan |
|
$ 313.27 | |||||
| F38 | 5304504802 | Fan Blade,axial (Replaces: 5304476059) |
|
- | |||||
| F47 | 5304476201 | Filter, Dryer |
|
$ 38.98 | |||||
| F5 | 5304476796 | Louver,vertical |
|
- | |||||
| F6 | 5304476797 | Louver,horizontal ,left |
|
- | |||||
| F7 | 5304476798 | Louver,horizontal ,right |
|
- | |||||
| F8 | 5304476850 | Pc Board,display/input |
|
$ 170.73 | |||||
| F9 | 5304482595 | Wire,connecting |
|
- |
