SELECT A DIAGRAM

01 - Top And Console Parts

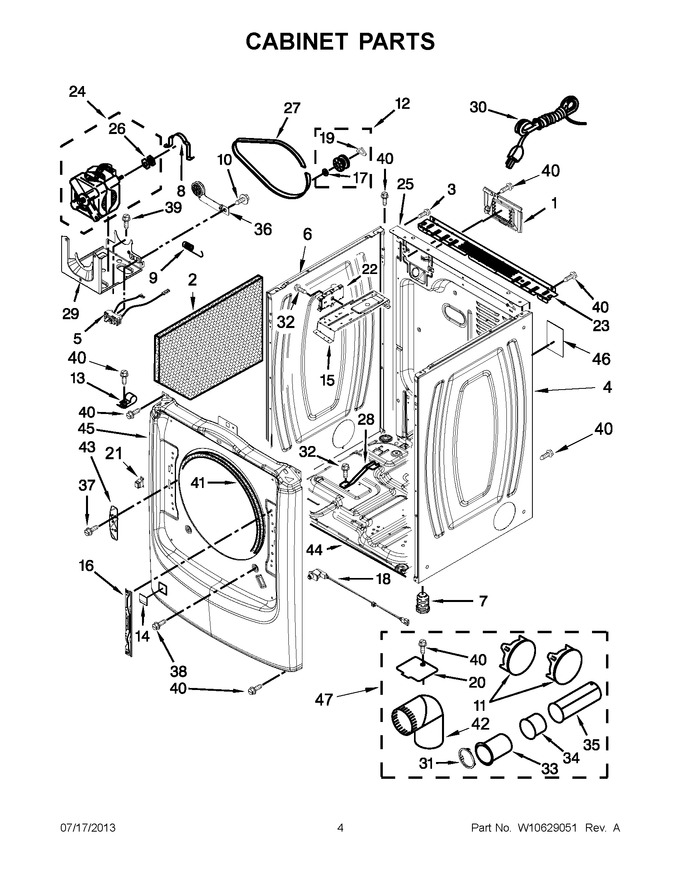

02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
2	W10123956		Panel, Dampening		Appelez-nous	-
3	W10850756		Screw   (Replaces: 8533974)				$ 7.38
4	W11310043		Panel, Side (right) (white)   (Replaces: W10469589)				$ 277.32
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 24.21
6	W11233548		Panel, Side (left) (white)   (Replaces: W10468495)				$ 235.20
7	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
8	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 24.26
9	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
10	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
11	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 68.02
12	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 29.26
13	3978776		Bracket, Gas Pipe		Appelez-nous	-
14	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 14.85
15	W10259611		Bracket, Control				$ 127.30
16	W10315109		Bracket, Door Hinge		Appelez-nous	-
17	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 6.80
18	W11427601		Door Switch, Snap In   (Replaces: W10569114)				$ 68.88
19	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.71
20	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 8.47
21	W11240283		Assembly, Spring Catch   (Replaces: W10208401)			Immediately	$ 25.24
22	WPW10542001		Board, Control   (Replaces: W10542001)			Immediately	$ 335.48
23	WPW10208382		Bracket, Rear   (Replaces: W10208382)				$ 41.56
24	WPW10508324		Assembly, Motor   (Replaces: W10396038)			Immediately	$ 308.62
25	W10487431		Panel, Rear				$ 171.29
26	W10837625		Pulley, Motor   (Replaces: W10460106)			Immediately	$ 11.49
27	WPW10112954		Belt, Drive   (Replaces: W10112954)			Immediately	$ 94.79
28	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
29	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 85.36
30	W11222083		Cord, Power   (Replaces: W10440461)				$ 113.96
31	WPW10344699		Collar, Duct   (Replaces: W10344699)				$ 77.13
32	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
33	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 86.36
34	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 74.61
35	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 83.92
36	W10837240		Assembly, Idler   (Replaces: W10547287)			Immediately	$ 32.20
37	W11661566		Screw   (Replaces: W10288126)				$ 13.26
38	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.08
39	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
40	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.45
41	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
42	WPW10416072		Elbow   (Replaces: W10416072)				$ 25.34
43	WPW10208250		Strike, Door   (Replaces: W10208250)				$ 39.47
44	W11215531		Base, Cabinet   (Replaces: 8565046)				$ 328.82
45	W10363954		Panel, Front (white)				$ 180.67
46	W11409002		Pad, Foam   (Replaces: W10504381)				$ 21.38
47	W10323246		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Venting			Immediately	$ 80.96
NI	49621		Foot, Optional (extended Lengthpackage Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70

    View Diagram in Separate Window       Print Part List
