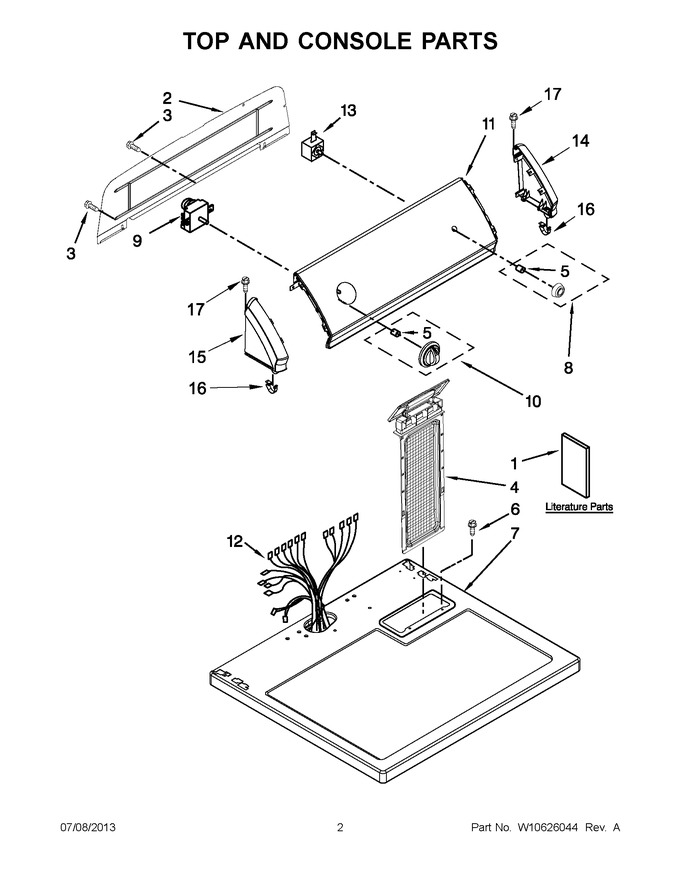

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8318272 Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10348336		Wiring Diagram		Appelez-nous	-
1	W10514185		Installation Instructions		Appelez-nous	-
1	W10096992		Use & Care Guide		Appelez-nous	-
2	W10103406		Panel, Rear   (Replaces: 8274261)				$ 135.31
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
4	W11778253		Screen, Lint   (Replaces: 8558463)			Immediately	$ 54.63
5	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
6	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
7	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
8	W10317459		Knob, Push To Start (grey)		Appelez-nous	-
9	WP3977678		Timer Assembly (60 Hz.)   (Replaces: 3977678)				$ 332.54
10	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
11	W10536504		Console (panel, Control)		Appelez-nous	-
12	8299877		Harness, Wiring		Appelez-nous	-
13	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 26.66
14	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 72.77
15	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 72.99
16	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
17	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
