SELECT A DIAGRAM

01 - Cover Sheet

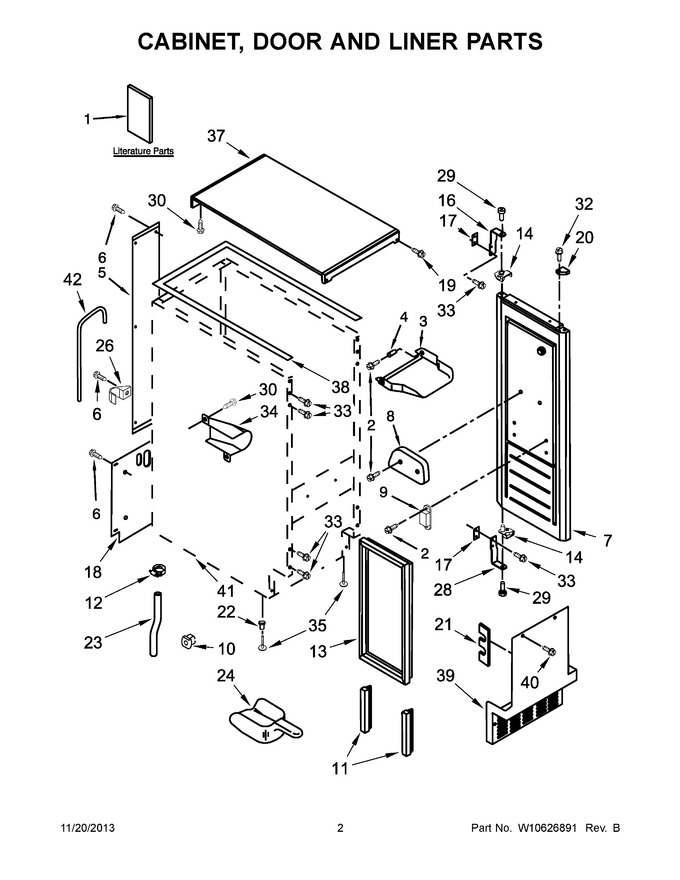

02 - Cabinet, Door And Liner Parts


03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10541605		Use & Care Guide		Appelez-nous	-
1	W10541636		Instructions, Installation		Appelez-nous	-
1	W10492485		Tech Sheet		Appelez-nous	-
2	3400886		Screw (stainless)				$ 5.65
3	2185742		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	W10502166Q		Door (black0   (Replaces: W10502166)				$ 879.95
8	W10486874		Cam-door		Appelez-nous	-
9	W11223751		Assembly, Magnetic Catch   (Replaces: W10529250)				$ 62.40
10	W10136999		Nut, Push-in		Appelez-nous	-
11	2217367		Gasket, Bottom		Appelez-nous	-
12	WP489503		Clamp, Hose   (Replaces: 489503)			Immediately	$ 11.29
13	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 285.98
14	W10486561		Hinge Sleeve/ Door Stop (stop, Bottom Door (black))		Appelez-nous	-
14	W10486559		Hinge Sleeve/ Door Stop (stop, Top Door (black))				$ 34.53
16	W10476703		Hinge, Top (black)				$ 40.54
17	W10544727		Shim, Top Hinge		Appelez-nous	-
17	W10544734		Shim, Bottom Hinge		Appelez-nous	-
18	WPW10136199		Cover, Unit   (Replaces: W10136199)				$ 108.85
19	W11788665		Screw (black)   (Replaces: 8534075)				$ 12.77
20	W10501849		Filler, Bottom Endcap (black)		Appelez-nous	-
20	W10501833		Filler, Top Endcap (black)		Appelez-nous	-
21	W10532250		Pad-foam,		Appelez-nous	-
22	3400240		Nut		Appelez-nous	-
23	W10825876		Tube, Bin To Pump   (Replaces: W10493860)				$ 74.89
24	W11420408		Scoop   (Replaces: W10493422)				$ 28.61
26	WP2208367		Clamp-half   (Replaces: 2208367)				$ 73.20
28	W10476696		Hinge, Bottom (black)				$ 40.64
29	2185712		Pin, Hinge				$ 49.37
30	WP250830		Screw   (Replaces: 489048)				$ 8.78
32	348689		Screw				$ 78.07
33	W10495264		Screw (black)				$ 10.80
34	2185927		Holder, Scoop				$ 89.07
35	8193716		Leg, Leveling   (Replaces: 3374849)			Immediately	$ 88.96
37	W10320117		Panel, Top (black)		Appelez-nous	-
38	W11624957		Gasket, Top Panel   (Replaces: 2217293)		Appelez-nous	-
39	WP2185571B		Grill, Front (black)   (Replaces: 2185571B)				$ 241.63
40	W10531302		Screw (black)		Appelez-nous	-
41	N/P		Cabinet & Liner (not Serviced)		Appelez-nous	-
42	WPW10217906		Tube, Air Vent   (Replaces: W10217906)				$ 125.83

    View Diagram in Separate Window       Print Part List
