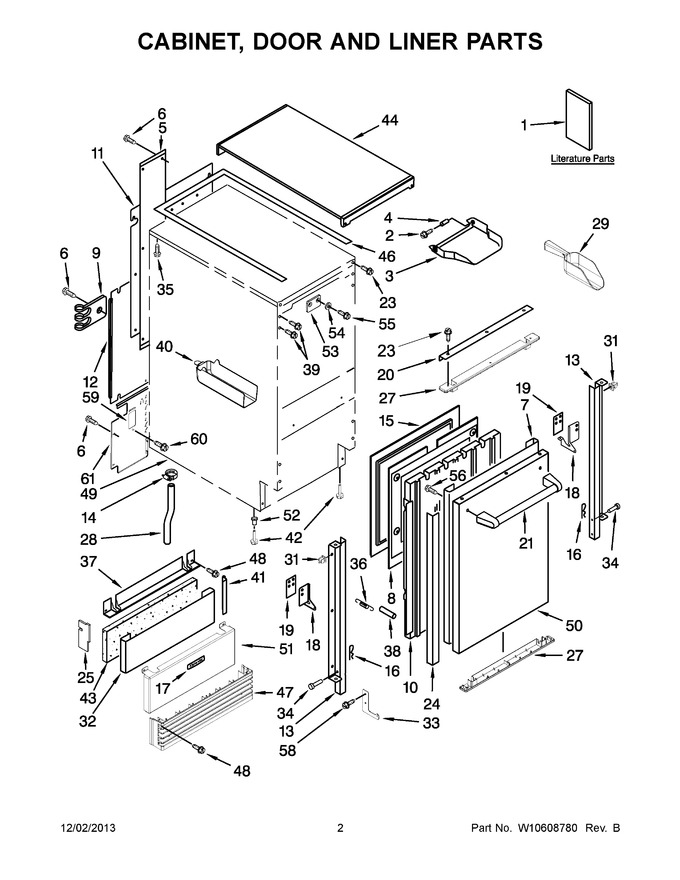

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10552173 | Use & Care Guide |
|
- | |||||
| 1 | W10541636 | Instructions, Installation |
|
- | |||||
| 1 | W10492485 | Tech Sheet |
|
- | |||||
| 2 | 3400886 | Screw (stainless) |
|
$ 5.65 | |||||
| 3 | 2208354 | Bin, Door |
|
- | |||||
| 4 | 2185678 | Spacer |
|
$ 9.93 | |||||
| 5 | 2217394 | Cover, Wiring |
|
- | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 7 | 2208352B | Panel, Door (black) |
|
- | |||||
| 8 | W10515398 | Panel, Interior |
|
$ 328.10 | |||||
| 9 | WP488366 | Clip, Water Tube (Replaces: 2208136) |
|
$ 10.73 | |||||
| 10 | 2208377 | Insulation |
|
- | |||||
| 11 | W10218024 | Ballast Back, Icemaker |
|
- | |||||
| 12 | W10200006 | Panel, Upper Back |
|
- | |||||
| 13 | 2217465 | Bracket, Door (right Hand) |
|
- | |||||
| 13 | 2217466 | Bracket, Door (left Hand) |
|
- | |||||
| 14 | WP489503 | Clamp, Hose (Replaces: 489503) |
|
Immediately | $ 10.16 | ||||
| 15 | W10136896 | Gasket, Door (black) |
|
- | |||||
| 16 | W11545866 | Clip (Replaces: W10136142) |
|
$ 10.69 | |||||
| 17 | 2319107 | Nameplate, Kitchenaid |
|
- | |||||
| 18 | 2208425 | Hinge (left Hand) |
|
- | |||||
| 18 | 2208426 | Hinge (right Hand) |
|
- | |||||
| 19 | 2208401 | Shim, Hinge |
|
- | |||||
| 20 | W10129511 | Trim, Magnet (black) |
|
- | |||||
| 21 | W10129457 | Assembly, Handle |
|
- | |||||
| 23 | 8534081 | Screw (stainless) |
|
$ 7.81 | |||||
| 24 | 2208595B | Grommet, Edge Guard (black) |
|
- | |||||
| 25 | 2217225 | Pad, Foam |
|
- | |||||
| 27 | W10129509 | Endcap, Door (black) |
|
- | |||||
| 28 | 2208453 | Tube, Drain |
|
- | |||||
| 29 | W10508276A | Scoop (Replaces: W10508276) |
|
- | |||||
| 31 | WP692400 | Screw Grommet (Replaces: 692400) |
|
Immediately | $ 7.22 | ||||
| 32 | 2208382B | Panel, Lower (black) |
|
- | |||||
| 33 | 2208487 | Bracket, Spring |
|
- | |||||
| 34 | 2208417 | Pin, Hinge |
|
- | |||||
| 35 | WP250830 | Screw (Replaces: 489048) |
|
$ 7.90 | |||||
| 36 | WP2208570 | Spring, Hinge (Replaces: W10191920) |
|
$ 21.41 | |||||
| 37 | W10136906 | Endcap, Lower Panel |
|
- | |||||
| 38 | 2208530 | Dampener, Spring |
|
- | |||||
| 40 | W10557773 | Holder, Scoop |
|
- | |||||
| 41 | 2208596B | Grommet, Edge Guard |
|
- | |||||
| 42 | W10516124 | Leveler, Leg |
|
- | |||||
| 43 | 2208384 | Insulation, Lower Panel |
|
- | |||||
| 44 | W10514165 | Panel, Top |
|
- | |||||
| 46 | 2217296 | Gasket, Top Panel |
|
- | |||||
| 47 | WP2217206B | Grill, Front (Replaces: W10136904) |
|
$ 104.65 | |||||
| 48 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 7.70 | ||||
| 49 | N/P | Cabinet & Liner (not Serviced) |
|
- | |||||
| 50 | W10711919 | Panel, Door Wrap (Replaces: W10129483) |
|
$ 260.22 | |||||
| 51 | 2208594S | Panel, Lower Wrap |
|
$ 218.92 | |||||
| 52 | 8534070 | Nut, Leg Leveler |
|
- | |||||
| 53 | 2208434 | Strike, Magnet |
|
- | |||||
| 54 | 3400916 | Washer |
|
- | |||||
| 55 | 8281191 | Screw |
|
$ 6.09 | |||||
| 56 | WP3400237 | Screw (Replaces: 3400237) |
|
$ 7.30 | |||||
| 58 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 59 | W11318234 | Cover, Drain Pump (Replaces: W10129515) |
|
- | |||||
| 60 | WP90767 | Screw (stainless) (Replaces: 8281192) |
|
Immediately | $ 7.43 | ||||
| 61 | W10200030 | Panel, Lower |
|
- |
