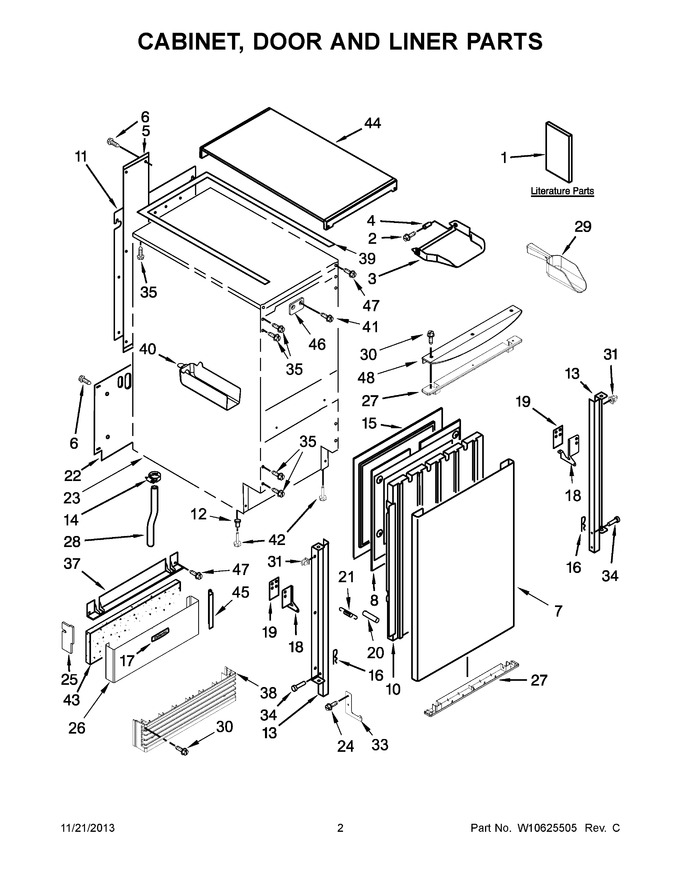

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10552173 | Use & Care Guide |
|
- | |||||
| 1 | W10492485 | Tech Sheet |
|
- | |||||
| 1 | W10541636 | Instructions, Installation |
|
- | |||||
| 2 | 3400886 | Screw (stainless) |
|
$ 5.65 | |||||
| 3 | 2208354 | Bin, Door |
|
- | |||||
| 4 | 2185678 | Spacer |
|
$ 11.03 | |||||
| 5 | 2217394 | Cover, Wiring |
|
- | |||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | 2208352W | Panel, Exterior (white) |
|
- | |||||
| 7 | 2208352B | Panel, Exterior (black) |
|
- | |||||
| 8 | W10563026 | Panel, Interior |
|
- | |||||
| 10 | 2208377 | Insulation |
|
- | |||||
| 11 | W10218024 | Ballast Back, Icemaker |
|
- | |||||
| 12 | 3400240 | Nut |
|
- | |||||
| 13 | 2217465 | Bracket, Door (right Hand) |
|
- | |||||
| 13 | 2217466 | Bracket, Door (left Hand) |
|
- | |||||
| 14 | WP489503 | Clamp, Hose (Replaces: 489503) |
|
Immediately | $ 11.29 | ||||
| 15 | W11624959 | Gasket, Door (Replaces: 2217295) |
|
$ 244.84 | |||||
| 16 | W11545866 | Clip (Replaces: W10136142) |
|
$ 11.88 | |||||
| 17 | WPW10243392 | Nameplate (black) (Replaces: W10243392) |
|
$ 73.70 | |||||
| 17 | WPW10243393 | Nameplate (white) (Replaces: W10243393) |
|
$ 69.98 | |||||
| 18 | 2208426 | Hinge (right Hand) |
|
- | |||||
| 18 | 2208425 | Hinge (left Hand) |
|
- | |||||
| 19 | 2208401 | Shim, Hinge |
|
- | |||||
| 20 | 2208529 | Dampener, Spring |
|
- | |||||
| 21 | W11095554 | Spring, Hinge (Replaces: 2208480) |
|
- | |||||
| 22 | WPW10136200 | Assembly, Unit Cover (Replaces: W10136200) |
|
$ 113.70 | |||||
| 23 | N/P | Cabinet & Liner (not Serviced) |
|
- | |||||
| 24 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 25 | 2217225 | Pad, Foam |
|
- | |||||
| 26 | 2208382W | Panel, Lower (white) |
|
- | |||||
| 26 | 2208382B | Panel, Lower (black) |
|
- | |||||
| 27 | 2208350W | Endcap, Door (white) |
|
- | |||||
| 27 | W11413461 | Endcap, Door (black) (Replaces: 2208350B) |
|
- | |||||
| 28 | 2208453 | Tube, Drain |
|
- | |||||
| 29 | W10508276A | Scoop (Replaces: W10508276) |
|
- | |||||
| 30 | 8534077 | Screw (white) |
|
- | |||||
| 30 | W11788665 | Screw (black) (Replaces: 8534075) |
|
$ 12.77 | |||||
| 31 | WP692400 | Screw Grommet (Replaces: 692400) |
|
Immediately | $ 8.02 | ||||
| 33 | 2208487 | Bracket, Spring |
|
- | |||||
| 34 | 2208417 | Pin, Hinge |
|
- | |||||
| 35 | WP250830 | Screw (Replaces: 489048) |
|
$ 8.78 | |||||
| 37 | 2208383B | Endcap, Panel (black) |
|
- | |||||
| 37 | 2208383W | Endcap, Panel (white) |
|
- | |||||
| 38 | 2217206W | Grill, Front (white) |
|
- | |||||
| 38 | WP2217206B | Grill, Front (black) (Replaces: 2217206B) |
|
$ 116.28 | |||||
| 39 | 2217296 | Gasket, Top Panel |
|
- | |||||
| 40 | W10557773 | Holder, Scoop |
|
- | |||||
| 41 | 8281191 | Screw |
|
$ 6.77 | |||||
| 42 | 8193716 | Leg, Leveling (Replaces: 3374849) |
|
Immediately | $ 88.96 | ||||
| 43 | 2208384 | Insulation, Lower Panel |
|
- | |||||
| 44 | W10320118 | Top (black) |
|
- | |||||
| 44 | W10516503 | Top (white) |
|
- | |||||
| 45 | 2208596B | Grommet, Edge Guard |
|
- | |||||
| 46 | 2208434 | Strike, Magnet |
|
- | |||||
| 47 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 8.55 | ||||
| 48 | 2208440B | Handle, Door (black) |
|
- | |||||
| 48 | 2208440W | Handle, Door (white) |
|
- |
