SELECT A DIAGRAM

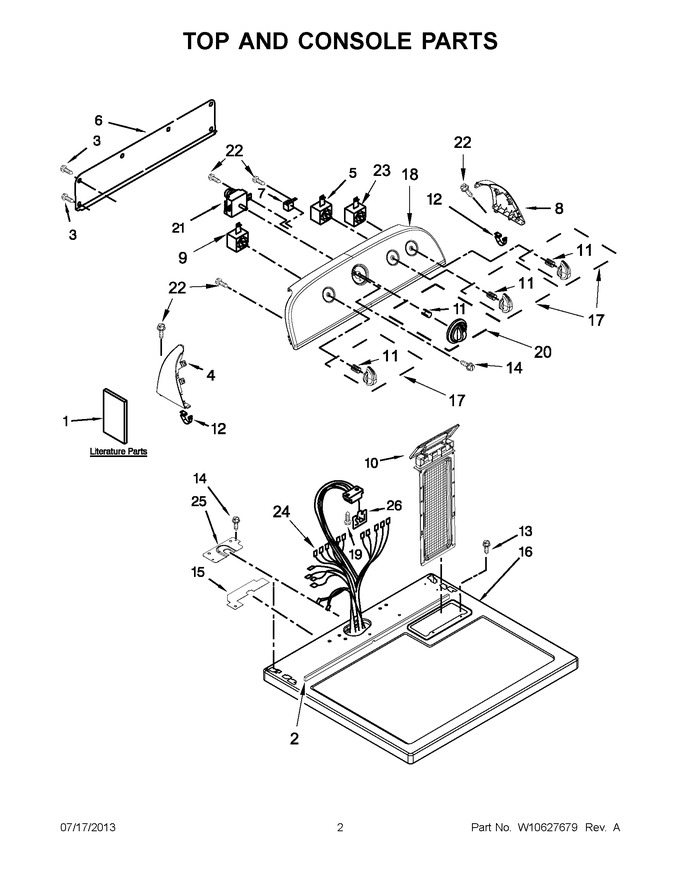

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10562358		Installation Instructions		Appelez-nous	-
1	W10562352		Use And Care Guide		Appelez-nous	-
1	8578889		Wiring Diagram		Appelez-nous	-
2	W10316616		Seal, Foam				$ 25.01
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 6.80
4	WPW10520782		End Cap (left) (white)   (Replaces: W10520782)				$ 58.22
5	WP3405156		Switch, Wrinkle Guard   (Replaces: 3405156)				$ 137.51
6	W10556829		Panel, Rear (console)				$ 257.24
7	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
8	WPW10520780		End Cap (right) (white)   (Replaces: W10520780)				$ 57.91
9	WP8578352		Switch, Rotary Temperature   (Replaces: 8578352)				$ 214.07
10	W11778253		Lint Screen   (Replaces: 8557857)			Immediately	$ 49.17
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
12	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 13.28
14	WP3400818		Screw   (Replaces: 3400818)				$ 7.93
15	W10112603		Seal, Harness		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 314.33
17	WPW10576637		Assembly, Control Knob (white/metallic)   (Replaces: W10576637)				$ 49.10
18	W10557241		Assembly, Console				$ 113.97
19	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
20	WPW10576635		Assembly, Timer Knob (white/metallic)   (Replaces: W10576635)				$ 47.45
21	WP8566184		Assembly, Timer (60 Hz.)   (Replaces: 8566184)			Immediately	$ 263.09
22	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 7.43
23	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 77.04
24	W10565798		Harness, Wiring		Appelez-nous	-
25	W10112578		Bracket, Harness		Appelez-nous	-
26	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 296.94
