SELECT A DIAGRAM
01 - Top And Console Parts
02 - Cabinet Parts

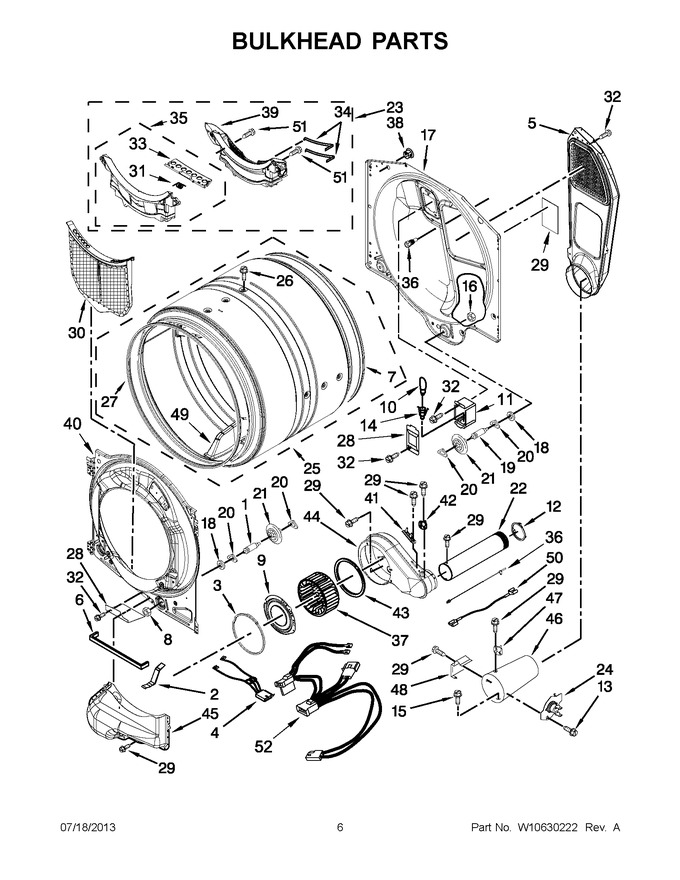

03 - Bulkhead Parts
04 - Door Parts
05 - 8576353 Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, Drum Roller -right Hand Thread (Replaces: W10359271) |
|
Immediately | $ 62.21 | ||||
| 2 | W10414388 | Clip, Lint Duct |
|
$ 14.56 | |||||
| 3 | W11821372 | Seal, Blower Cover (Replaces: W10211899) |
|
$ 22.39 | |||||
| 4 | WPW10298258 | Harness, Sensor (Replaces: W10298258) |
|
Immediately | $ 7.84 | ||||
| 5 | WPW10293765 | Assembly, Air Duct (Replaces: W10295533) |
|
$ 355.54 | |||||
| 6 | W11676493 | Seal, Housing Outlet (Replaces: W10211950) |
|
Immediately | $ 29.03 | ||||
| 7 | 280114 | Seal, Drum (Replaces: W10521118) |
|
Immediately | $ 70.82 | ||||
| 8 | W11812294 | Nut, Hex (Replaces: 3934666) |
|
$ 12.77 | |||||
| 9 | W10211901 | Assembly, Collar |
|
$ 94.08 | |||||
| 10 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 14.85 | ||||
| 11 | 8578825 | Bracket, Drum Light |
|
$ 21.92 | |||||
| 12 | WPW10344699 | Collar, Duct (Replaces: W10344699) |
|
$ 85.70 | |||||
| 13 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 14 | W11222979 | Socket, Light (Replaces: W10214261) |
|
Immediately | $ 118.79 | ||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | WPW10080190 | Nut, Hex (left Hand Thread) (Replaces: W10001120) |
|
Immediately | $ 10.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 260.14 | |||||
| 18 | W11236646 | Washer (Replaces: 3387459) |
|
Immediately | $ 14.73 | ||||
| 19 | WPW10359272 | Shaft, Drum Roller - Left Hand Thread (Replaces: W10359272) |
|
Immediately | $ 58.48 | ||||
| 20 | WPW10512946 | Washer, Tri Ring (Replaces: W10512946) |
|
Immediately | $ 8.80 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: W10314171) |
|
Immediately | $ 28.50 | ||||
| 22 | WPW10342188 | Exhaust Pipe (Replaces: W10342188) |
|
Immediately | $ 139.40 | ||||
| 23 | W10906551 | Assembly, Outlet Grill And Housing (Replaces: W10219012) |
|
Immediately | $ 276.56 | ||||
| 24 | WP8573713 | Cut-off, Thermal (Replaces: 8573713) |
|
Immediately | $ 72.51 | ||||
| 25 | W10508188 | Assembly, Drum (complete) |
|
$ 365.09 | |||||
| 26 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 8.18 | ||||
| 27 | W11193479 | Seal, Drum Front (Replaces: W10521122) |
|
Immediately | $ 22.62 | ||||
| 28 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 32.64 | |||||
| 29 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 23.76 | |||||
| 30 | W11758174 | Lint Screen (Replaces: W10370972) |
|
Immediately | $ 52.12 | ||||
| 31 | W11242876 | Spring, Lint Screen Door (Replaces: W10219015) |
|
$ 110.26 | |||||
| 32 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 33 | W11156832 | Door, Lint Screen (Replaces: W10219016) |
|
Immediately | $ 56.63 | ||||
| 34 | WP3387223 | Sensor, Electrode (Replaces: 3387223) |
|
Immediately | $ 6.17 | ||||
| 35 | W10905013 | Assembly, Housing And Door (Replaces: W10219013) |
|
$ 226.36 | |||||
| 36 | WPW10419068 | Thermistor, Gas Inlet (Replaces: W10419068) |
|
$ 104.45 | |||||
| 37 | WP697772 | Wheel, Blower (Replaces: W10211915) |
|
Immediately | $ 59.07 | ||||
| 38 | 8529007 | Plug, Rear Bulkhead |
|
$ 78.87 | |||||
| 39 | W11125442 | Grill, Outlet (Replaces: W10211903) |
|
$ 236.44 | |||||
| 40 | W10459180 | Bulkhead, Front |
|
$ 357.86 | |||||
| 41 | WP3392519 | Fuse, Thermal (91° C) (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 43.61 | ||||
| 43 | WP697770 | Seal, Plate Cover (Replaces: 697770) |
|
Immediately | $ 8.27 | ||||
| 44 | WPW10211911 | Housing, Blower (Replaces: W10211911) |
|
Immediately | $ 149.69 | ||||
| 45 | WPW10211896 | Assembly, Lint Duct (Replaces: W10211896) |
|
$ 219.70 | |||||
| 46 | WP8573824 | Funnel, Burner (Replaces: 8573824) |
|
$ 185.29 | |||||
| 47 | WP3391912 | Thermostat, Hi Limit (Replaces: 3391912) |
|
Immediately | $ 71.56 | ||||
| 48 | WP338906 | Sensor, Radiant (Replaces: 338906) |
|
Immediately | $ 51.91 | ||||
| 49 | W11841932 | Bafffle, Drum (Replaces: W10416098) |
|
$ 39.96 | |||||
| 50 | W10525140 | Jumper, Tco High Limit |
|
- | |||||
| 51 | WP3387230 | Screw (Replaces: 3387230) |
|
Immediately | $ 8.54 | ||||
| 52 | W10708958 | Harness, Gas (Replaces: W10468426) |
|
$ 160.51 |
