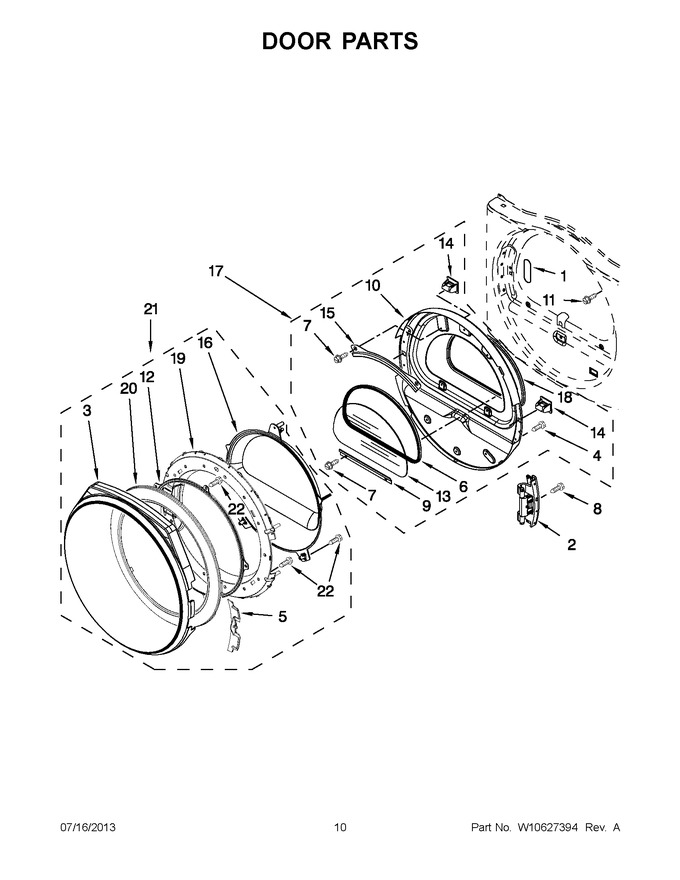

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly Parts


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10256915		Label, Hinge Hole (white)   (Replaces: W10256915)				$ 82.07
2	WPW10304672		Assembly, Door Hinge   (Replaces: W10304672)			Immediately	$ 232.48
3	W10215757		Trim, Door Ring Outer (white)				$ 95.49
3	W10215823		Trim, Door Ring Outer (silver)				$ 132.75
4	W11116979		Screw   (Replaces: 8534044)				$ 13.76
5	W10215766		Cover, Door Hinge (white)				$ 26.09
5	W10215825		Cover, Door Hinge (silver)		Appelez-nous	-
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 28.22
7	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
8	WPW10159996		Screw   (Replaces: W10159996)				$ 8.52
9	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
10	W11690171		Door, Inner   (Replaces: W10363674)				$ 204.49
11	WP355515		Screw   (Replaces: 355515)				$ 8.48
12	W10215761		Screen, Door				$ 59.51
13	WPW10286878		Window   (Replaces: W10286878)				$ 274.76
14	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
15	8519356		Retainer, Window (upper)		Appelez-nous	-
16	W10215764		Door, Intermediate Stationary				$ 97.85
17	W10564641		Assembly, Inner Door				$ 226.63
18	WPW10163915		Seal, Door   (Replaces: W10163915)			Immediately	$ 87.42
19	W10431338		Door, Intermediate Rotational		Appelez-nous	-
20	N/P		Trim-door Inner Ring (not Servicable, Order Item 21)		Appelez-nous	-
21	W10371561		Assembly, Outer Door (white)				$ 227.16
21	W10371562		Assembly, Outer Door (silver)				$ 226.70
22	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 7.55
