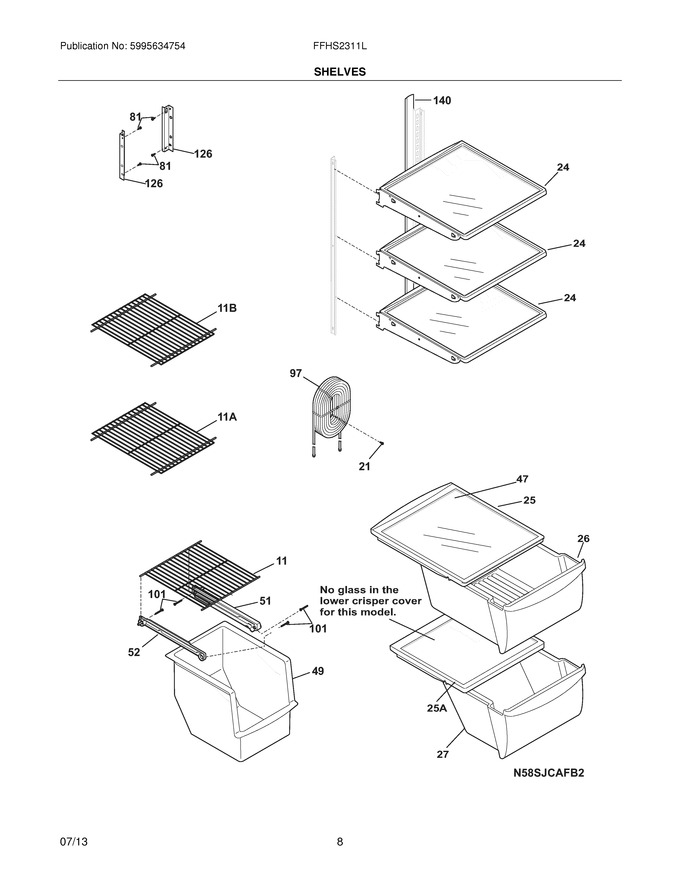

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	241657601		Shelf,flip Up ,wire				$ 88.31
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240355277		Shelf-``spill-safe``,cantilever ,fixed				$ 237.63
25	240354502		Cover-crisper Pan,upper			Immediately	$ 111.13
26	240354723		Pan-crisper,upper   (Replaces: 240354706)			Immediately	$ 182.57
27	240354805		Pan-crisper,lower   (Replaces: 240354806)				$ 186.32
47	240350613		Insert-pan Cover,glass   (Replaces: 240350631)				$ 137.35
49	240564301		Basket-sliding				$ 146.63
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	242220506		Water Tank   (Replaces: 240545310)				$ 105.53
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
140	240430501		Channel,wtr Tube Cover				$ 108.68
11A	5304532465		Shelf,fixed ,freezer   (Replaces: 241657501)				$ 60.11
11B	5304532464		Shelf,fixed Upper ,freezer   (Replaces: 241657503)		Appelez-nous	-
25A	240354602		Cover-crisper Pan,lower				$ 98.29
NI	242200102		Clip,tubing ,90 Deg Elbow   (Replaces: 242200101)				$ 11.81
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 78.40
NI	240349801		Clip-slide,pan				$ 22.75
NI	240362101		Clip-slide,cover				$ 52.25
NI	242028559		Energy Guide		Appelez-nous	-
