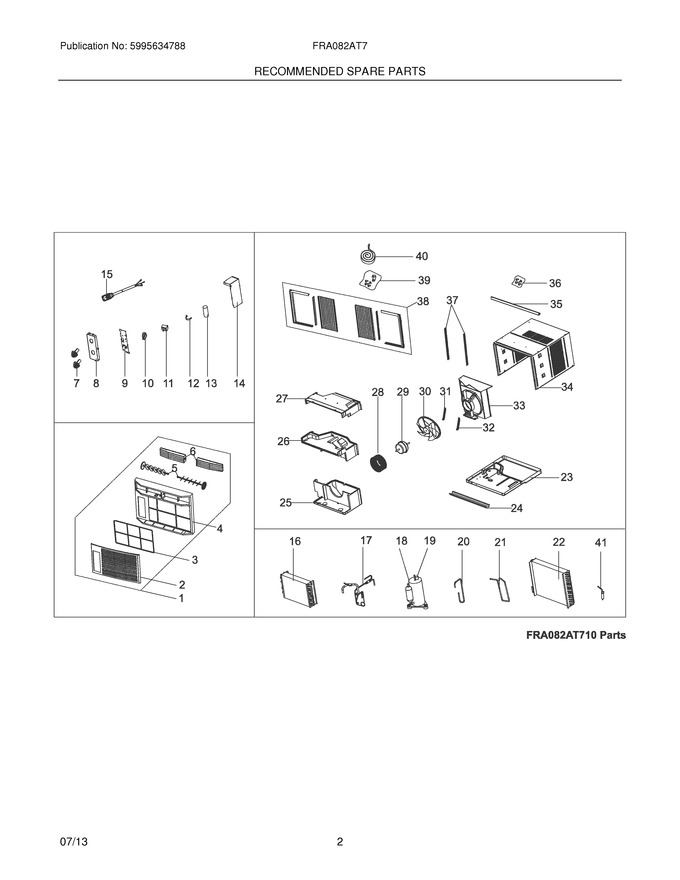

03 - Recommended Spare Parts


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304492077		· Panel,front Grille ,tilt-out		Appelez-nous	-
4	5304492079		· Frame,front Assembly		Appelez-nous	-
7	5304487522		Knob Assembly,control ,w/spring		Appelez-nous	-
9	5304477053		Cover,control Box		Appelez-nous	-
12	5304471203		Strap,capacitor Clamp		Appelez-nous	-
14	5304486035		Control Box,electrical		Appelez-nous	-
23	5304486061		Base,unit Chassis		Appelez-nous	-
24	5304483091		Rail,,shutter Track ,bottom		Appelez-nous	-
25	5304476557		Scroll,blower Housing ,bottom		Appelez-nous	-
26	5304486038		Scroll,blower Housing ,middle		Appelez-nous	-
27	5304486039		Scroll,blower Housing ,top		Appelez-nous	-
31	5304476574		Support,motor Mount ,left		Appelez-nous	-
32	5304476575		Support,motor Mount ,right		Appelez-nous	-
33	5304483090		Shroud,condenser/fan		Appelez-nous	-
34	5304483093		Cabinet,wrapper/sleeve		Appelez-nous	-
35	5304477054		Rail,shutter Track ,top				$ 50.09
36	5304472191		Screw Kit,top Rail Mount				$ 16.22
37	5304476523		Retainer,shutter ,cabinet Sides				$ 6.54
38	5304476524		Window Filler Kit,slider Panels ,accordion				$ 20.90
39	5304491953		Hardware,mounting ,screws/locks				$ 19.52
40	5304472211		Seal Kit,foam ,sash Filler				$ 36.12
F1	5304492076		Front Assembly,complete Panel		Appelez-nous	-
F10	5304476765		Sensor Assembly,temperature				$ 91.72
F11	5304476766		Switch,master ,rotary		Appelez-nous	-
F13	5304476003		Capacitor		Appelez-nous	-
F15	5304487573		Power Cord,electric ,lcdi		Appelez-nous	-
F16	5304492106		Evaporator		Appelez-nous	-
F17	5304492021		· Tube,capillary		Appelez-nous	-
F18	5304489721		Compressor,with Overload		Appelez-nous	-
F19	5304492022		· Overload Protector,compressor		Appelez-nous	-
F20	5304492023		Tube,suction		Appelez-nous	-
F21	5304492024		Tube,discharge		Appelez-nous	-
F22	5304492025		Condenser		Appelez-nous	-
F28	5304476051		Blower Wheel,centrifugal		Appelez-nous	-
F29	5304476115		Motor,fan				$ 276.52
F3	5304492078		· Filter,air ,plastic Frame		Appelez-nous	-
F30	5304504732		Fan Blade,axial Flow   (Replaces: 5304483089)		Appelez-nous	-
F41	5304476367		Filter-dryer				$ 45.55
F5	5304492080		· Louver,vertical		Appelez-nous	-
F6	5304492081		· Louver,horizontal		Appelez-nous	-
F8	5304477135		Control Panel,with Overlay		Appelez-nous	-
