01 - Cover

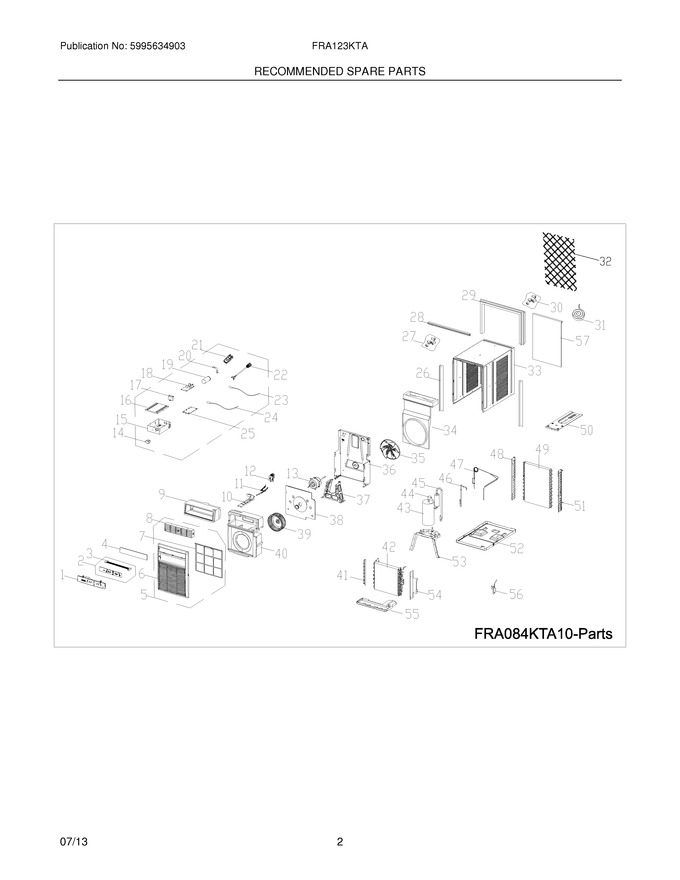

03 - Recommended Spare Parts
04 - Wiring Diagram
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304476461 | Cover,control Panel |
|
- | |||||
| 9 | 5304487580 | Vent,scroll Adapter ,top/front |
|
- | |||||
| 15 | 5304491887 | Control Box |
|
- | |||||
| 16 | 5304476469 | Cover,control Box |
|
- | |||||
| 20 | 5304477345 | Strap,capacitor Clamp |
|
- | |||||
| 25 | 5304476251 | Holder,mounting Plate ,control |
|
- | |||||
| 26 | 5304476474 | Channel,side Mount ,slide |
|
- | |||||
| 27 | 5304521206 | Screw Kit,top Rail Mount (Replaces: 5304471644) |
|
- | |||||
| 28 | 5304477287 | Rail,shutter Track ,top |
|
- | |||||
| 29 | 5304477288 | Frame,window Panel ,seal |
|
$ 17.75 | |||||
| 30 | 5304471645 | Hardware Kit,installation |
|
- | |||||
| 31 | 5304471646 | Seal Kit,window ,foam Strips |
|
$ 39.53 | |||||
| 32 | 5304476477 | Grille,rear |
|
- | |||||
| 33 | 5304476503 | Cabinet,wrapper/sleeve |
|
- | |||||
| 34 | 5304471367 | Shroud,fan Housing ,condenser |
|
- | |||||
| 36 | 5304487591 | Bulkhead,partition ,front |
|
- | |||||
| 37 | 5304477290 | Support,motor Mount ,36 |
|
- | |||||
| 38 | 5304487590 | Panel,scroll ,rear |
|
- | |||||
| 40 | 5304487592 | Scroll,blower Housing |
|
- | |||||
| 41 | 5304476504 | Bracket,evaporator ,left |
|
- | |||||
| 48 | 5304476509 | Bracket,condenser ,left |
|
- | |||||
| 50 | 5304476494 | Platform,unit Support |
|
- | |||||
| 51 | 5304476511 | Bracket,condenser ,right |
|
- | |||||
| 52 | 5304476496 | Base,unit Chassis |
|
- | |||||
| 53 | 5304476497 | Base,compressor |
|
- | |||||
| 54 | 5304476512 | Bracket,evaporator ,right |
|
- | |||||
| 55 | 5304471379 | Tray,drain Pan |
|
- | |||||
| 57 | 5304491890 | Panel,window ,plastic |
|
- | |||||
| F1 | 5304477303 | Control Panel,with Overlay |
|
- | |||||
| F10 | 5304476466 | Support,vent Door |
|
- | |||||
| F11 | 5304476467 | Lever,vent Opener |
|
- | |||||
| F12 | 5304471356 | Door,air Vent Cover |
|
- | |||||
| F13 | 5304475761 | Motor,fan |
|
$ 374.64 | |||||
| F14 | 5304470989 | Transformer |
|
$ 94.98 | |||||
| F17 | 5304483052 | Capacitor,fan Motor |
|
- | |||||
| F18 | 5304491888 | Pc Board,control ,main |
|
- | |||||
| F19 | 4055426367 | Capacitor,compressor (Replaces: 5304471214) |
|
- | |||||
| F2 | 5304476460 | Pc Board,display/input |
|
$ 146.71 | |||||
| F21 | 5304476904 | Remote Control,transmitter |
|
$ 104.94 | |||||
| F22 | 5304476502 | Power Cord,electric ,lcdi |
|
$ 115.76 | |||||
| F23 | 5304487589 | Thermistor,temp Sensor ,indoor |
|
- | |||||
| F24 | 5304476473 | Thermistor,evaporator ,sensor |
|
- | |||||
| F3 | 5304480400 | Wire,connector ,pc Boards |
|
- | |||||
| F35 | 5304471366 | Fan Blade,propeller |
|
$ 75.19 | |||||
| F39 | 5304471360 | Blower Wheel,centrifugal Fan |
|
- | |||||
| F42 | 5304476505 | Evaporator |
|
- | |||||
| F43 | 5304475760 | Compressor,with Overload |
|
- | |||||
| F44 | 5304476297 | Overload Protector,compressor |
|
- | |||||
| F45 | 5304476506 | Tube,suction |
|
- | |||||
| F46 | 5304476507 | Tube,discharge |
|
- | |||||
| F47 | 5304492038 | Tube,capillary |
|
- | |||||
| F49 | 5304476510 | Condenser |
|
- | |||||
| F5 | 5304477276 | Front Assembly,complete Panel |
|
$ 146.27 | |||||
| F56 | 5304476367 | Filter-dryer |
|
$ 45.55 | |||||
| F6 | 5304476463 | ยท Panel,front Grille |
|
- | |||||
| F7 | 5304471327 | Filter,air |
|
- | |||||
| F8 | 5304477283 | Louver,four Way |
|
- |
