01 - Top And Cabinet Parts
02 - Door Parts

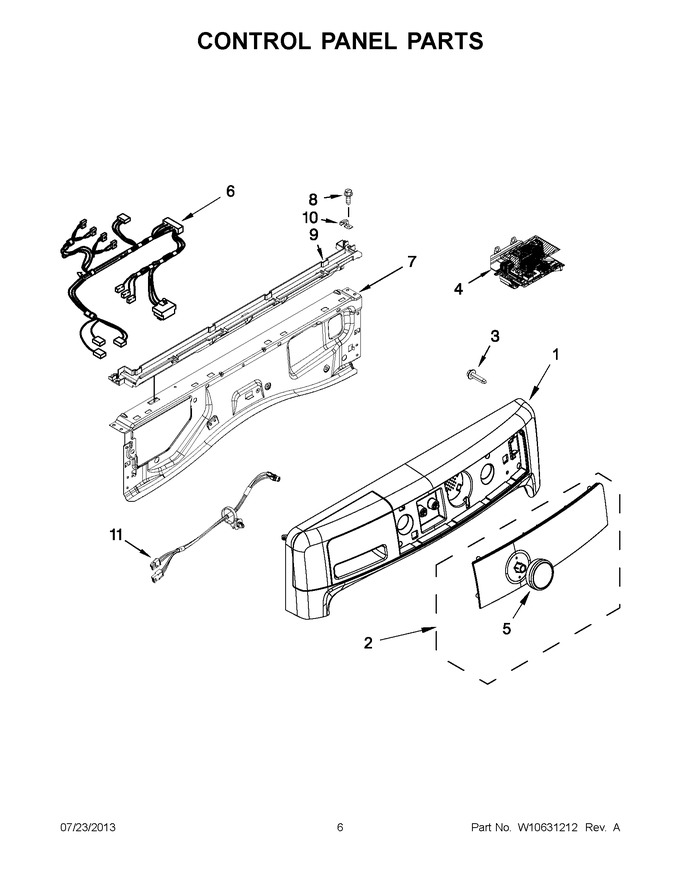

03 - Control Panel Parts
04 - Dispenser Parts
05 - Tub And Basket Parts
06 - Pump Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10547983 | Assembly, Console (granite) |
|
$ 220.97 | |||||
| 1 | W10468505 | Assembly, Console (white) |
|
$ 264.77 | |||||
| 2 | W10635983 | Assembly, Iml (granite) (Replaces: W10587510) |
|
$ 558.85 | |||||
| 2 | W10587507 | Assembly, Iml (white) |
|
$ 290.14 | |||||
| 3 | W10489172 | Screw |
|
$ 11.98 | |||||
| 4 | WPW10635841 | Control Unit, Appliance (Replaces: W10455317) |
|
$ 434.84 | |||||
| 5 | W10853910 | Assembly, Control Knob (silver) (Replaces: W10519048) |
|
$ 53.94 | |||||
| 6 | W10602913 | Harness, Main (upper) |
|
$ 121.01 | |||||
| 7 | W10208197 | Bracket, Console |
|
$ 174.54 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 8.38 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10317570) |
|
$ 90.94 | |||||
| 10 | W10317566 | Clip, Spring |
|
$ 9.16 | |||||
| 11 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 28.54 |
