View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts

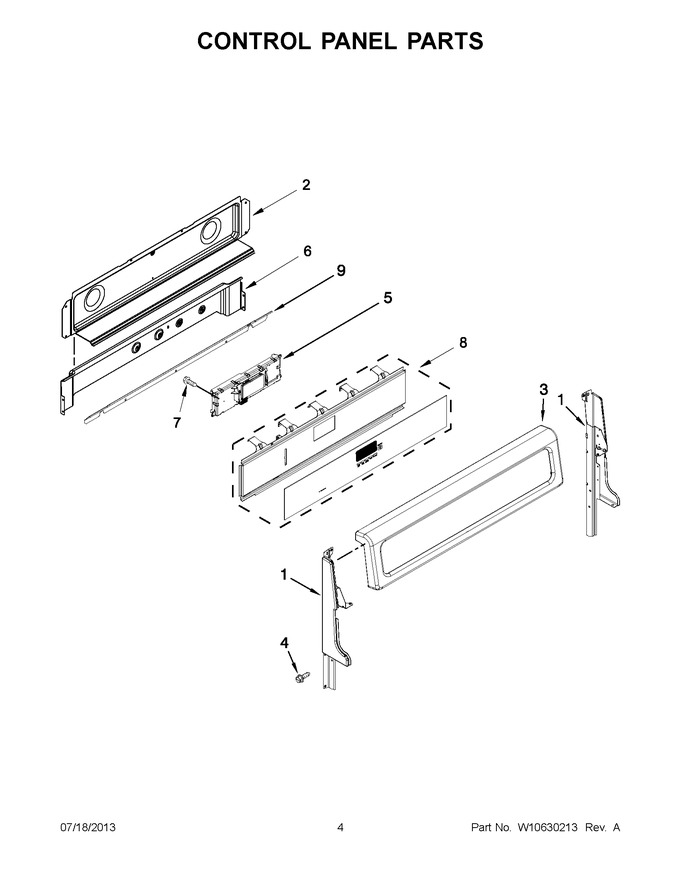

02 - Control Panel Parts
03 - Chassis Parts
04 - Internal Oven Parts
05 - Upper Door Parts
06 - Lower Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319109 | Support, Backguard (black (left Hand)) |
|
$ 92.84 | |||||
| 1 | W10319111 | Support, Backguard (black (right Hand)) |
|
$ 43.80 | |||||
| 2 | W10296773 | Cover, Backguard |
|
$ 194.52 | |||||
| 3 | W10097310 | Console (stainless) |
|
$ 116.84 | |||||
| 4 | W11233072 | Screw (Replaces: 7101P634-60) |
|
Immediately | $ 14.72 | ||||
| 5 | WPW10459367 | Control. Mrc2 (Replaces: W10459367) |
|
$ 710.59 | |||||
| 6 | W10278697 | Shield, Vent |
|
Immediately | $ 183.33 | ||||
| 7 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 7.55 | |||||
| 8 | W10450483 | Assembly, Membrane (stainless) |
|
$ 290.88 | |||||
| 9 | WPW10299338 | Shield, Wire Cover (Replaces: W10299338) |
|
$ 96.60 |
