SELECT A DIAGRAM

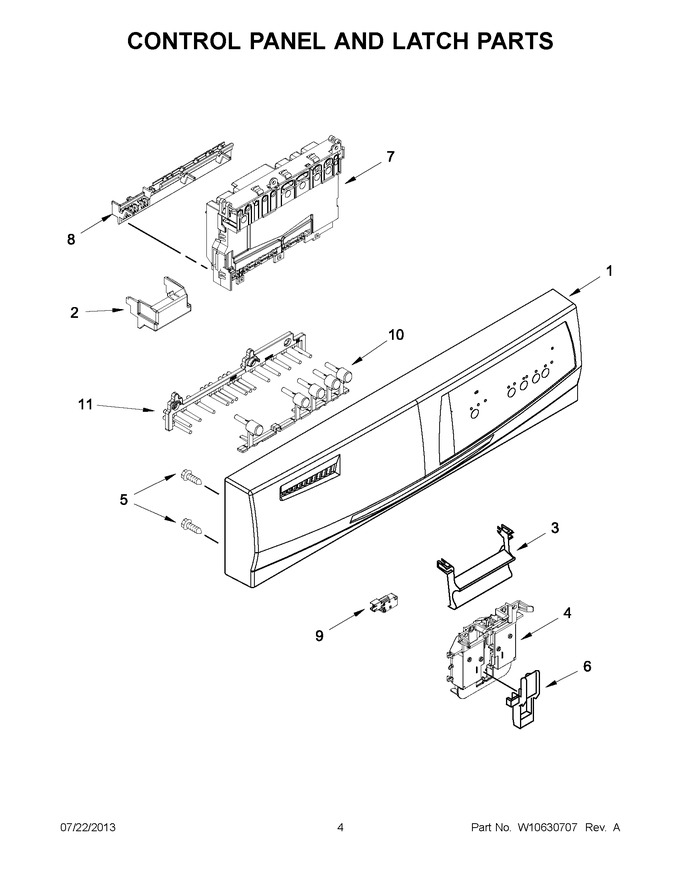

01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump, Washarm And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10508913		Console Assembly (includes Insert) (white)   (Replaces: W10577259)				$ 294.40
2	W10783730		Box, Connector   (Replaces: W10401190)				$ 31.41
3	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13
4	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
5	WPW10348413		Screw   (Replaces: W10348413)			Immediately	$ 8.41
6	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
7	W10588603		Control, Electronic		Appelez-nous	-
8	WPW10372484		Brace, Connector   (Replaces: W10372484)				$ 23.37
9	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 82.89
10	WPW10274840		Button Tree   (Replaces: W10274840)				$ 19.75
11	W10854407		Light Pipe   (Replaces: W10274836)				$ 90.33

    View Diagram in Separate Window       Print Part List
