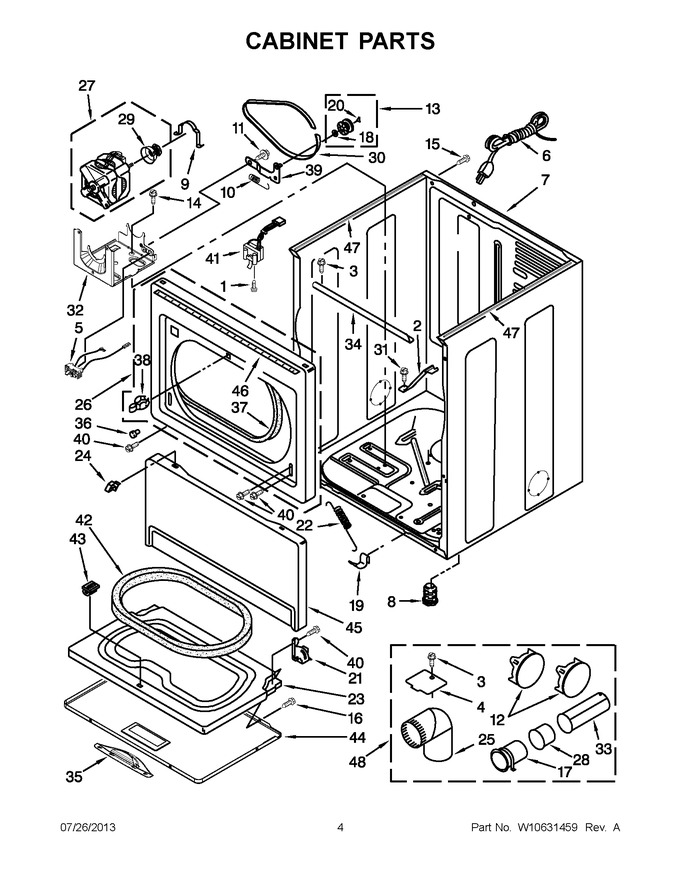

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - 8576353 Burner Assembly Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3395530		Screw   (Replaces: 697773)				$ 8.57
2	W10181903		Bracket, Burner   (Replaces: 8529757)		Appelez-nous	-
3	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
4	WPW10354249		Plate, Cover   (Replaces: W10354249)				$ 9.41
5	W10847984		Switch, Broken Belt   (Replaces: W10411936)			Immediately	$ 26.90
6	W11222083		Power Card   (Replaces: 344020)				$ 126.62
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 440.17
8	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 24.69
9	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 26.96
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 25.80
11	WP3389420		Screw   (Replaces: 3389420)				$ 8.62
12	WPW10404617		Plug, Multivent (midnight Grey)   (Replaces: W10404617)				$ 75.58
13	279640		Assembly, Pulley   (Replaces: W10468057)			Immediately	$ 32.51
14	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
15	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
16	WP488627		Screw   (Replaces: 342055)				$ 8.11
17	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 95.95
18	WPW10121334		Washer   (Replaces: W10121334)			Immediately	$ 7.55
19	WPW10291934		Clip   (Replaces: W10291934)				$ 8.14
20	WPW10512946		Washer, Tri Ring   (Replaces: W10512946)			Immediately	$ 8.80
21	WP3387560		Assembly, Hinge (right)   (Replaces: 3387560)				$ 109.20
21	WP3387559		Assembly, Hinge (left)   (Replaces: 3387559)				$ 109.20
22	WP3387565		Spring, Door   (Replaces: 3387565)				$ 41.32
23	WP8066045		Door Inner   (Replaces: 8066045)				$ 204.20
24	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 8.45
25	WPW10416072		Elbow   (Replaces: 49026)				$ 28.16
26	697227		Upper Front Panel (white)		Appelez-nous	-
27	279787		Assembly, Motor 60   (Replaces: W10317045)			Immediately	$ 235.65
28	WPW10331278		Pipe, Exhaust (short)   (Replaces: W10331278)				$ 82.90
29	W10837625		Pulley, Motor   (Replaces: W10402907)			Immediately	$ 12.77
30	661570V		Belt, Drive   (Replaces: 3387610)			Immediately	$ 32.81
31	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
32	W11481730		Bracket, Motor Mounting   (Replaces: W10242878)			Immediately	$ 94.84
33	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 93.24
34	W10236068		Bracket, Cabinet				$ 24.47
35	WPW10284093		Handle, Door (white)   (Replaces: W10284093)				$ 105.29
36	693152		Bumper				$ 11.51
37	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
38	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
39	W10837240		Bracket, Idler   (Replaces: 3388674)			Immediately	$ 35.78
40	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
41	WP3406107		Switch, Door   (Replaces: 3406107)			Immediately	$ 31.20
42	W10325058		Seal, Door				$ 136.50
43	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
44	W10279553		Door, Front (white)		Appelez-nous	-
45	WP3406797		Toe Panel (includes. Illus. 36 ) (white)   (Replaces: 697215)				$ 250.25
46	W10312811		Seal, Spill Guard				$ 67.73
47	W10336128		Seal, Foam				$ 15.08
48	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, 4-way Venting			Immediately	$ 76.65
NI	49621		Foot, Optional Extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
