SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Induction


07 - Body

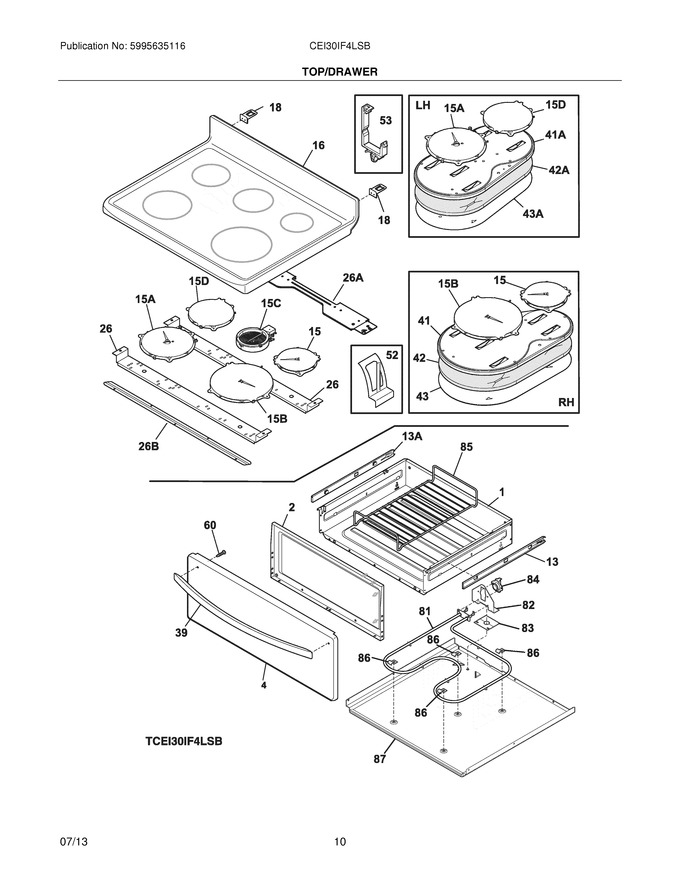

09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408902		Drawer,warmer				$ 130.46
2	316403303		Liner,drawer				$ 67.79
4	316382700		Panel,drawer ,stainless				$ 258.67
13	316415000		Glide,warmer ,inner Rh   (Replaces: 316415002)				$ 65.36
16	5304490373		Maintop,black				$ 454.18
18	316580800		Bracket-hinge,main Top			Immediately	$ 10.95
26	316427604		Channel,element Support ,(2)		Appelez-nous	-
39	316380802		Handle,door ,stainless				$ 278.73
41	316306401		Panel,mounting ,induction ,rh				$ 155.93
42	316306800		Insulation,rh				$ 98.44
43	316306601		Shield,heat ,rh				$ 70.88
52	316461700		Clip,element Mtg				$ 13.39
53	316301200		Clip,wiring ,natural ,(2) ,induction		Appelez-nous	-
60	316439503		Screw,handle Mtg. ,no.10-24 X 1.000 ,(2)		Appelez-nous	-
82	316093200		Bracket,element Mtg		Appelez-nous	-
83	316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	316093502		Thermo Disc,warmer Drawer				$ 56.70
85	807328301		Rack,warmer Drawer   (Replaces: 316425900)				$ 96.90
86	316095800		Clip-hold Down				$ 9.93
87	316091900		Base,warmer Drawer				$ 221.55
13A	316415001		Glide,warmer ,inner Lh			Immediately	$ 65.36
15No.	316306000		Element,induction Coil ,120mm ,rh Rear				$ 265.43
26A	316352700		Bracket,chassis Support		Appelez-nous	-
26B	316501501		Bracket,chassis Support ,front				$ 15.33
41A	316306501		Panel,mounting ,induction ,lh		Appelez-nous	-
42A	316306900		Insulation,lh				$ 94.55
43A	316306701		Shield,heat ,lh				$ 81.11
F15A	316305800		Element,induction Coil ,180mm ,lh Front				$ 308.41
F15B	316305600		Element,induction Coil ,260mm ,rh Front				$ 368.81
F15C	316307500		Element,warmer Zone ,120mm-120w				$ 94.65
F15D	316305801		Element,induction Coil ,180mm ,lr Front				$ 233.84
F81	316437300		Element,warmer Drawer				$ 117.97
FNI	5304516184		Harness,warm Base   (Replaces: 316525623)				$ 31.68
FNI	5304490378		Harness,wiring ,aux ,es1040 Teis		Appelez-nous	-
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 14.96
NI	5308014215		Screw`6-20 X 0.312				$ 2.53
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.37
NI	316468100		Cleaner,smoothtop ,w/sponge				$ 4.88
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 14.32
NI	316089500		Screw, 10-16 X .486				$ 14.96
NI	316418900		Screw,sims Lp ,no.8-32 X 5/16`` ,black				$ 15.75

    View Diagram in Separate Window       Print Part List
