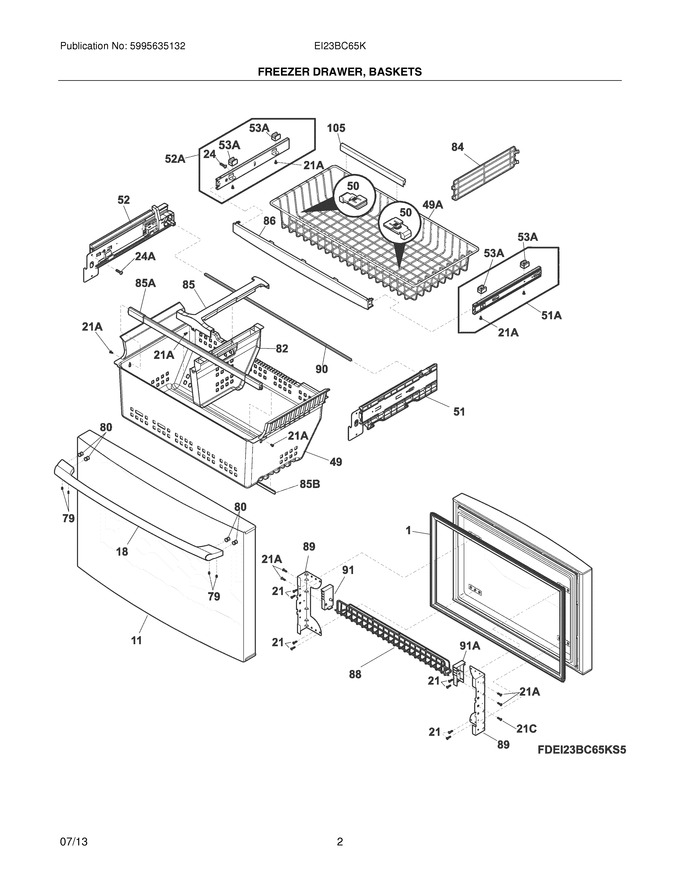

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 241987922 | Drawer,stainless ,freezer |
|
$ 713.58 | |||||
| 18 | 241881310 | Handle-frzr Drawer,stainless |
|
$ 301.61 | |||||
| 21 | 241690602 | Screw,quadrex ,no.10-16 Hilo |
|
$ 11.81 | |||||
| 24 | 5304515677 | Screw,truss Hd Quad ,no.10-16 X .500 ,zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 49 | 5304526200 | Basket-frzr,plastic ,lower (Replaces: 242130801) |
|
Immediately | $ 163.97 | ||||
| 50 | 242219502 | Clip-basket,pull Side |
|
$ 21.06 | |||||
| 51 | 5303918694 | Slide Assembly,basket Lower ,rh ,freezer Drawer (Replaces: 242147108) |
|
$ 240.19 | |||||
| 52 | 5303918693 | Slide Assembly,basket Lower ,lh ,freezer Drawer (Replaces: 242147107) |
|
Immediately | $ 284.81 | ||||
| 79 | 218755401 | Screw-set,10-32 X 0.375 |
|
Immediately | $ 27.80 | ||||
| 80 | 218755504 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 242131401 | Divider,basket |
|
$ 73.20 | |||||
| 84 | 241780905 | Divider,basket |
|
$ 101.59 | |||||
| 85 | 242139401 | Divider,basket ,lower |
|
$ 96.90 | |||||
| 86 | 5304507340 | Trim,drawer ,stabilizer (Replaces: 241807605) |
|
Immediately | $ 50.61 | ||||
| 88 | 241824008 | Rack-non-tilt Out,door |
|
$ 137.35 | |||||
| 89 | 241972302 | Bracket-freezer Drawer |
|
$ 121.34 | |||||
| 90 | 242136901 | Bar-timing |
|
$ 35.45 | |||||
| 91 | 241824102 | Cap-door Rack |
|
$ 19.38 | |||||
| 105 | 242116801 | Trim-basket |
|
$ 19.69 | |||||
| 21A | 241953902 | Screw,no.8 - 18 X .380 ,3 |
|
Immediately | $ 19.01 | ||||
| 21C | 241899703 | Screw,truss Head ,no.10-32 X 1/4 ,zinc |
|
$ 17.69 | |||||
| 24A | 240383412 | Screw,truss Hd Quad ,no.10-16 X .750 ,zinc |
|
$ 12.71 | |||||
| 49A | 241780811 | Basket-frzr,upper |
|
$ 236.59 | |||||
| 51A | 241894221 | Slide Assembly,basket ,rh ,freezer Drawer |
|
$ 148.05 | |||||
| 52A | 241894222 | Slide Assembly,basket ,lh ,freezer Drawer |
|
$ 148.84 | |||||
| 53A | 5303918801 | Retainer-basket (Replaces: 242216301) |
|
$ 14.32 | |||||
| 85A | 242139301 | Support-beam,divider ,lower Basket |
|
$ 81.90 | |||||
| 85B | 241872203 | Support-beam |
|
$ 59.83 | |||||
| 91A | 241824101 | Cap,door Rack ,white |
|
$ 19.38 | |||||
| F1 | 5304537408 | Gasket-frzr Drawer,gray ,magnetic (Replaces: 241778308) |
|
Immediately | $ 95.87 | ||||
| F51A | 242039701 | Screw,basket Slides |
|
$ 14.96 | |||||
| NI | 242139201 | Spring-compression,divider ,lower Basket |
|
$ 21.91 | |||||
| NI | 5304497384 | Plate,tapping (Replaces: 242147601) |
|
$ 17.33 | |||||
| NI | 242039702 | Screw,shoulder ,no.10-16 ,(2) |
|
$ 4.73 | |||||
| NI | 241701902 | Screwdriver,hex ,3/32`` ,ball Driver |
|
$ 22.05 | |||||
| NI | 241601002 | Wrench,allen |
|
- | |||||
| NI | 242015001 | Screw,8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| NI | 242011101 | Pin-lock |
|
$ 16.85 | |||||
| NI | 242146401 | Screw,ser Hex Wash Hd ,1/4-20 X 5/8 ,(4) |
|
Immediately | $ 15.86 |
