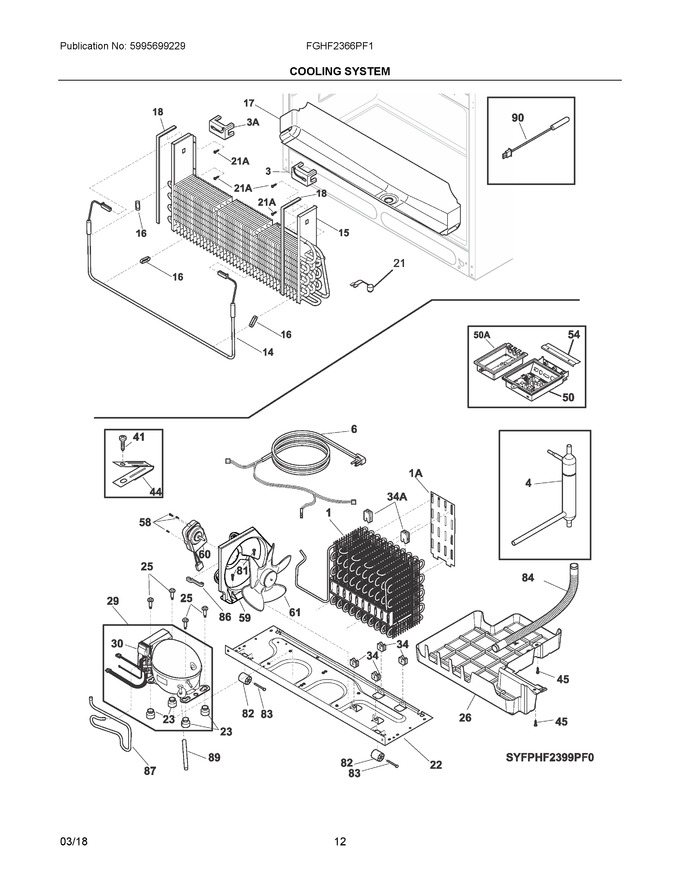

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241862903 | Condenser (Replaces: 241862901) |
|
$ 145.69 | |||||
| 3 | 241838401 | Block-evap Coil, Styrofoam Insul, Rh |
|
$ 22.75 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047603) |
|
Immediately | $ 35.19 | ||||
| 6 | 241516904 | Cord-service (Replaces: 241516901) |
|
Immediately | $ 42.98 | ||||
| 14 | 5303918410 | Defrost Heater Kit, 28' |
|
Immediately | $ 137.01 | ||||
| 15 | 5303918569 | Evaporator Kit, C/d Fdbm |
|
Immediately | $ 300.98 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 66.47 | ||||
| 17 | 241791201 | Trough-drain |
|
$ 121.28 | |||||
| 18 | 241860131 | Gasket, Closed Cell (Replaces: 241860101) |
|
Immediately | $ 6.16 | ||||
| 21 | 242046001 | Thermostat-defrost |
|
Immediately | $ 80.53 | ||||
| 22 | 241602112 | Base-compressor, W/rollers |
|
$ 308.70 | |||||
| 23 | 218513300 | Grommet-compr Mtg, (4) |
|
$ 47.25 | |||||
| 25 | 240491503 | Screw-compressor Mtg, 1/4-28 X 1.16, (4) |
|
$ 13.95 | |||||
| 26 | 241920608 | Pan-defrost (Replaces: 241920604) |
|
$ 156.05 | |||||
| 29 | 5304524549 | Compressor, Service (Replaces: 241706202) |
|
$ 937.32 | |||||
| 30 | 241577505 | Invertor |
|
Immediately | $ 404.55 | ||||
| 34 | 241929901 | Grommet-cond Mtg, (4) |
|
$ 10.24 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 50 | 242115282 | Board-main Power, Board & Housing (Replaces: 242115244) |
|
$ 390.64 | |||||
| 54 | 241532401 | Channel |
|
$ 33.86 | |||||
| 58 | 240569201 | Screw, 8-18 X 0.500 |
|
- | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 50.40 | |||||
| 60 | 242018301 | Motor-condenser Fan |
|
Immediately | $ 153.95 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 24.43 | ||||
| 81 | 240359403 | Screw-fan Shroud, (2) |
|
$ 4.21 | |||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 39.27 | ||||
| 84 | 241830904 | Tube-drain, Lower (Replaces: 241830902) |
|
Immediately | $ 25.99 | ||||
| 86 | 240409302 | Spacer-cond Tube, Black |
|
$ 74.99 | |||||
| 87 | 241846302 | Tube-suction, Jumper |
|
- | |||||
| 89 | 5303918910 | Tube-process (Replaces: 215346900) |
|
- | |||||
| 90 | 240597220 | Sensor, Temperature, 10k, Ntc (Replaces: 240597203) |
|
Immediately | $ 5.73 | ||||
| 1A | 241987301 | Deflector-air, Condenser |
|
$ 29.93 | |||||
| 21A | 218362501 | Screw, Hex Washer Head, 8-18ab X 1.250, Spacer, (2) |
|
$ 13.39 | |||||
| 34A | 241929902 | Grommet-cond Mtg, (4) |
|
$ 10.24 | |||||
| 3A | 241838402 | Block-evap Coil, Styrofoam Insul, Lh |
|
$ 22.05 | |||||
| 50AA | 241891610 | Power Board, Led (Replaces: 241891609) |
|
$ 281.14 | |||||
| NI | 5303918553 | Heat Exchanger Kit, Suction Line, Service |
|
$ 303.40 | |||||
| NI | 5303918554 | Hot Tube Repair Kit, Service |
|
$ 441.79 | |||||
| NI | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NI | 241947701 | Spacer, Heat Exchanger |
|
$ 111.23 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 67.73 | |||||
| NIA | 241810104 | Seal, Housing |
|
$ 13.48 | |||||
| NIA | 241852501 | Clip, Wiring Harness |
|
$ 17.33 | |||||
| NIA | 240346701 | Tape-foam Seal, Shroud |
|
$ 33.08 | |||||
| NIA | 242141401 | Harness-wiring, Machine Compt |
|
$ 243.52 | |||||
| NIA | 242036801 | Clip-tube, Drain |
|
$ 107.10 | |||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| NIB | 242119001 | Harness-wiring |
|
$ 135.66 |
