SELECT A DIAGRAM

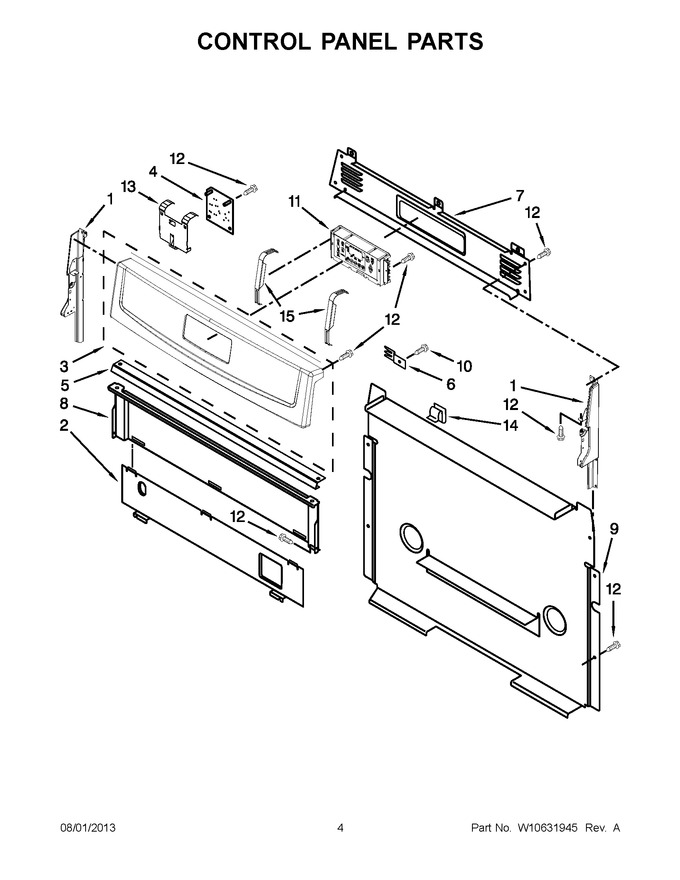

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer And Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219370		Endcap (white (right Hand))   (Replaces: W10184434)				$ 60.83
1	W11219664		Endcap (black (left Hand))   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black (right Hand))   (Replaces: W10184438)				$ 45.17
1	W11219365		Endcap (white (left Hand))   (Replaces: W10184433)				$ 42.45
2	8053505		Heat Shield				$ 165.89
3	WPW10572583		Panel, Console (stainless)   (Replaces: W10572583)				$ 322.09
3	W10572579		Panel, Console (white)		Appelez-nous	-
3	W10572581		Panel, Console (black)		Appelez-nous	-
4	WPW10331686		Module, Spark   (Replaces: W10331686)			Immediately	$ 393.86
5	W10525122		Bracket, Console Mounting				$ 40.06
6	8523412		Bracket, Rear Cooktop				$ 167.90
7	W10198745		Cover, Upper				$ 128.90
8	W10192841		Shield, Heat				$ 106.69
9	W10184370		Cover, Back		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
11	WPW10572544		Control, Range (white)   (Replaces: W10572544)				$ 253.33
11	W10899231		Control, Range (black)   (Replaces: W10572545)				$ 558.87
12	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
13	W10516463		Bracket, Dsi   (Replaces: W10137524)		Appelez-nous	-
14	WP8273564		Clip, Rear Upper Cover   (Replaces: 8273564)				$ 12.66
15	W11230932		Bracket, Mounting, Eoc   (Replaces: W10138683)			Immediately	$ 84.81

    View Diagram in Separate Window       Print Part List
