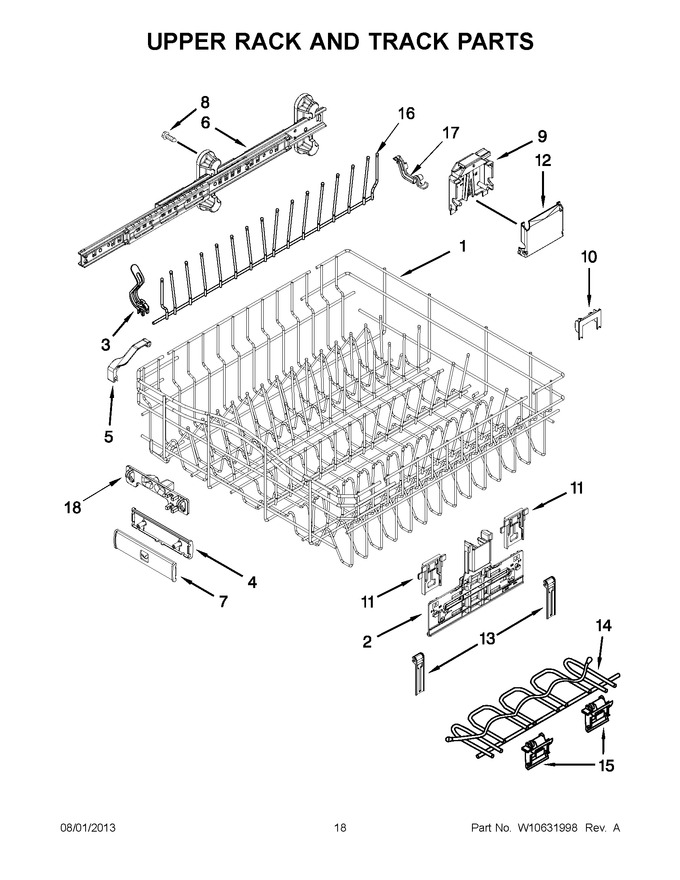

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11661174		Dishrack, Upper   (Replaces: W10194861)				$ 197.59
2	WPW10546503		Adjuster Assembly   (Replaces: W10306646)			Immediately	$ 43.81
3	WP8539101		Clip, No Flip   (Replaces: 8539101)				$ 84.22
4	W10587968		Handle, Dishrack (rear)		Appelez-nous	-
5	WPW10267076		Clip, Dispenser Guard   (Replaces: W10267076)				$ 31.56
6	W11259786		Track, Assembly (right Hand)   (Replaces: W10462358)			Immediately	$ 84.94
6	W11259785		Track, Assembly (left Hand)   (Replaces: W10462359)			Immediately	$ 78.80
7	W10587967		Handle, Dishrack (front)		Appelez-nous	-
8	WPW10309090		Screw   (Replaces: W10309090)			Immediately	$ 76.86
9	WPW10588164		Housing Adjuster (left Hand)   (Replaces: W10588164)			Immediately	$ 16.84
9	WPW10588165		Housing Adjuster (right Hand)   (Replaces: W10588165)			Immediately	$ 54.81
10	WPW10250160		Clip Adjuster   (Replaces: W10250160)			Immediately	$ 40.55
11	WPW10195840		Positioner, Adjuster   (Replaces: W10195840)			Immediately	$ 51.32
12	WPW10250162		Cover, Adjuster   (Replaces: W10250162)			Immediately	$ 7.61
13	WPW10195839		Strap, Tether Adjuster   (Replaces: W10195839)			Immediately	$ 30.81
14	W10208697		Cupshelf		Appelez-nous	-
15	8562026		Clip, Cupshelf				$ 101.18
16	W10194862		Tine, Fold Down				$ 87.03
17	WPW10082853		Clip, Pivot   (Replaces: W10082853)			Immediately	$ 5.40
18	WP8539102		Positioner, Dual Dishrack   (Replaces: 8539102)				$ 103.88
