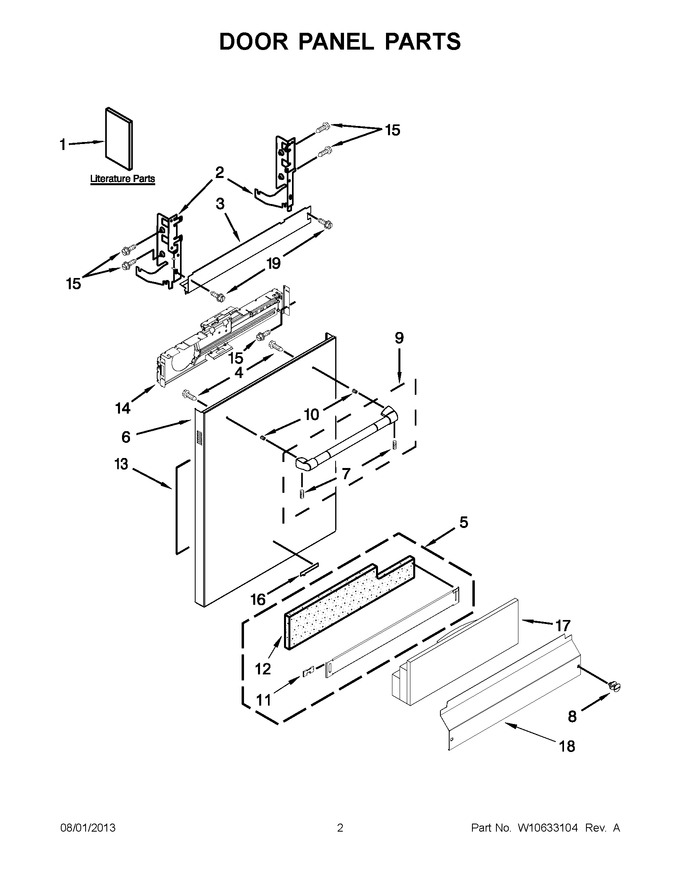

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10501738 | Installation Instructions |
|
- | |||||
| 1 | W10490712 | Energy Guide |
|
- | |||||
| 1 | W10596235 | Use & Care Guide, English/french |
|
- | |||||
| 1 | W10455257 | Tech Sheet, English |
|
- | |||||
| 1 | W10455258 | Tech Sheet, French |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: 8534854) |
|
Immediately | $ 142.39 | ||||
| 2 | W11806608 | Arm, Hinge (right Hand) (Replaces: 8534853) |
|
Immediately | $ 142.24 | ||||
| 3 | W10850371 | Vapor Barrier Assembly (Replaces: W10321447) |
|
Immediately | $ 32.88 | ||||
| 4 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 5 | W10871196 | Toe Panel (black) (Replaces: 8558252) |
|
$ 174.04 | |||||
| 6 | WPW10409492 | Panel, Front (stainless) (Replaces: W10409492) |
|
$ 377.12 | |||||
| 7 | W10276608 | Screw, Set |
|
$ 46.73 | |||||
| 8 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 9 | WPW10409518 | Handle Assembly (stainless) (Replaces: W10409518) |
|
$ 278.76 | |||||
| 10 | WP8564951 | Stud, Mounting (Replaces: 8564951) |
|
Immediately | $ 19.33 | ||||
| 11 | WP8269016 | Clip, Ground (Replaces: 8269016) |
|
$ 11.21 | |||||
| 12 | W10831329 | Insulation, Toe Panel (Replaces: W10385107) |
|
Immediately | $ 43.30 | ||||
| 13 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 14 | W11116870 | Bracket, Control Panel (Replaces: W10194911) |
|
$ 89.95 | |||||
| 15 | WP3400071 | Screw (Replaces: 3400071) |
|
$ 8.26 | |||||
| 16 | W11636815 | Nameplate (stainless) (Replaces: W10114211) |
|
$ 45.35 | |||||
| 17 | W10831329 | Insulation, Three Layer (Replaces: W10350437) |
|
Immediately | $ 43.30 | ||||
| 18 | W11763736 | Access Panel (black) (Replaces: W10195777) |
|
Immediately | $ 42.25 | ||||
| 19 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 |
