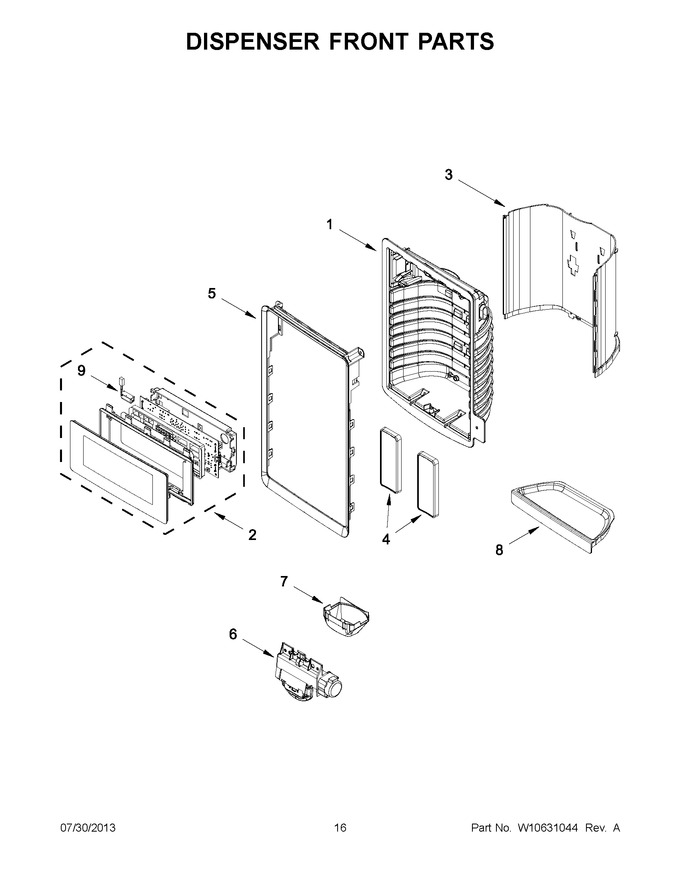

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WPW10590855		Ui Assembly (white)   (Replaces: W10590855)				$ 539.98
2	W10590858		Ui Assembly (black)		Appelez-nous	-
2	W10590856		Ui Assembly (stainless)		Appelez-nous	-
3	W10520867		False Wall, Dispenser (white)				$ 92.40
3	W10520868		False Wall, Dispenser (black)		Appelez-nous	-
3	W10520869		False Wall, Dispenser (grey)				$ 121.46
4	WPW10436679		Pad Assembly (white)   (Replaces: W10436679)				$ 87.47
4	W10436677		Pad Assembly (black)		Appelez-nous	-
4	W10436678		Pad Assembly (stainless)		Appelez-nous	-
5	W10587907		Ring, Trim (white)				$ 29.12
5	W10587908		Ring, Trim (black)				$ 47.22
5	W10587910		Ring, Trim (stainless)				$ 133.26
6	WPW10291704		Assembly, Separator   (Replaces: W10291704)				$ 192.66
7	WPW10435760		Guide, Ice   (Replaces: W10435760)				$ 23.94
8	W10322872		Tray, Drip (white)		Appelez-nous	-
8	WPW10322873		Tray, Drip (black)   (Replaces: W10322873)				$ 58.53
8	W10410105		Tray, Drip (grey)				$ 104.16
9	W11290115		Led Assembly   (Replaces: W10470750)				$ 84.45
