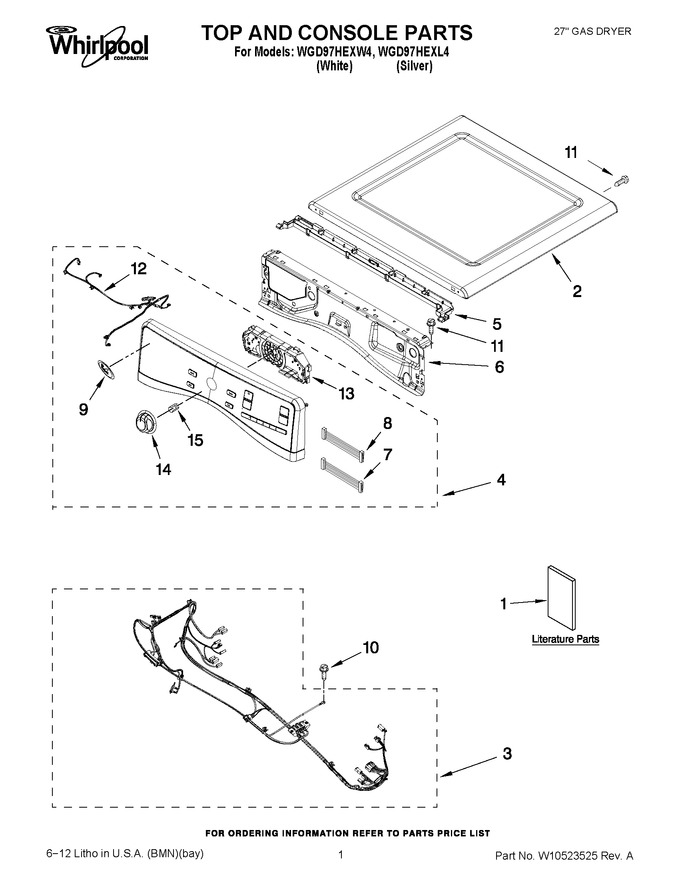

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10307147 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10410465		Tech Sheet		Appelez-nous	-
1	W10423115		Installation Instructions		Appelez-nous	-
1	W10305728		Use & Care Guide		Appelez-nous	-
2	WPW10316282		Top (silver)   (Replaces: W10316282)				$ 346.19
2	WPW10208383		Top (white)   (Replaces: W10208383)				$ 323.93
3	W10441591		Harness, Main				$ 231.28
4	W10388454		Panel, Console Assembly (white)		Appelez-nous	-
4	W10388455		Panel, Console Assembly (silver)		Appelez-nous	-
5	WPW10653575		Water Channel   (Replaces: W10259210)				$ 90.94
6	W11480682		Bracket, Console   (Replaces: W10208198)				$ 81.21
7	W10267938		Cable-jumper-10		Appelez-nous	-
8	W10267937		Cable-jumper-15		Appelez-nous	-
9	W10117943		Badge Assembly		Appelez-nous	-
10	WP693995		Screw, Ground   (Replaces: 693995)			Immediately	$ 7.55
11	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
12	W10450060		Cable, User Interface		Appelez-nous	-
13	W10277318		User Interface Center (includes Knob)		Appelez-nous	-
14	WPW10251394		Knob, Control   (Replaces: W10251394)				$ 55.94
15	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
