Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10575959 Instructions, Installation Appelez-nous -
1 W10600812 Guide, Use And Care Appelez-nous -
1 W10610016 Tech Sheet Appelez-nous -
1 9762761 Tips, Safe Cooking (english) Appelez-nous -
1 W10065852 Tips, Safe Cooking (french) Appelez-nous -
2 WPW10270604 Element (700w) (left Rear)   (Replaces: W10270604) Special Order $ 223.48

3 W11171119 Element (1200w) (right Rear)   (Replaces: 8273994) In-Stock Immediately $ 225.62

4 W11517959 Element (3000/1400w) (left Front)   (Replaces: W10275048) In-Stock Immediately $ 146.68

5 W10636388 Cooktop (black)   (Replaces: W10543374) In-Stock Immediately $ 534.21

5 W10636389 Cooktop (white)   (Replaces: W10543373) Appelez-nous -
6 W11047722 Element (2500w) (right Front)   (Replaces: 8273992) In-Stock Immediately $ 132.46

7 WP9762851 Element, Warm Zone (120v) (center Rear)   (Replaces: 9762851) In-Stock Immediately $ 290.36

8 WPW10225448 Spring, Element   (Replaces: W10225448) In-Stock Immediately $ 10.40


    View Diagram in Separate Window     Print Icon   Print Part List

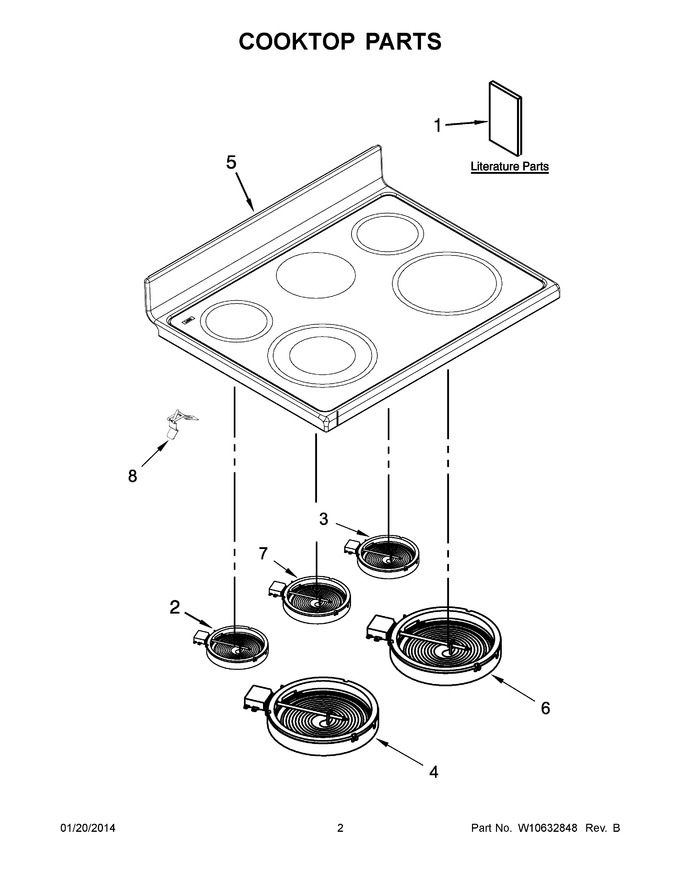

Diagram for WGE555S0BS00
