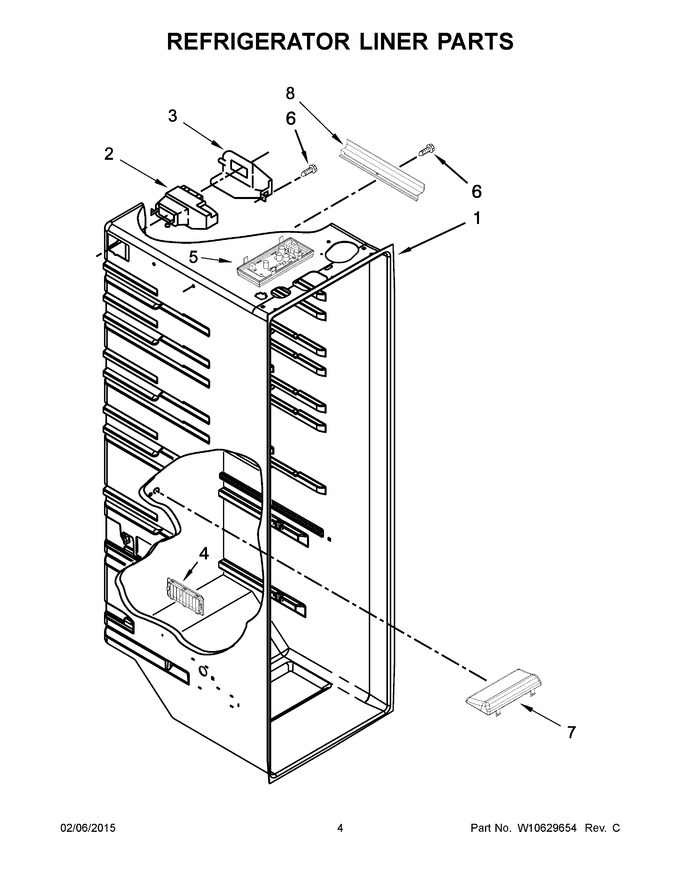

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	WPW10151374		Assembly, Air Diffuser   (Replaces: W10151374)			Immediately	$ 99.78
3	2152019		Cover, Air Diffuser				$ 86.03
4	W10550195		Louver		Appelez-nous	-
5	WPW10515058		Led Light Assembly, Flat Lens   (Replaces: W10515058)			Immediately	$ 37.12
6	WPW10141645		Screw   (Replaces: 489084)				$ 7.67
7	WPW10515057		Led Light Assembly, Tapered Lens   (Replaces: W10515057)			Immediately	$ 47.29
8	W10252495		Cover, Wiring		Appelez-nous	-
