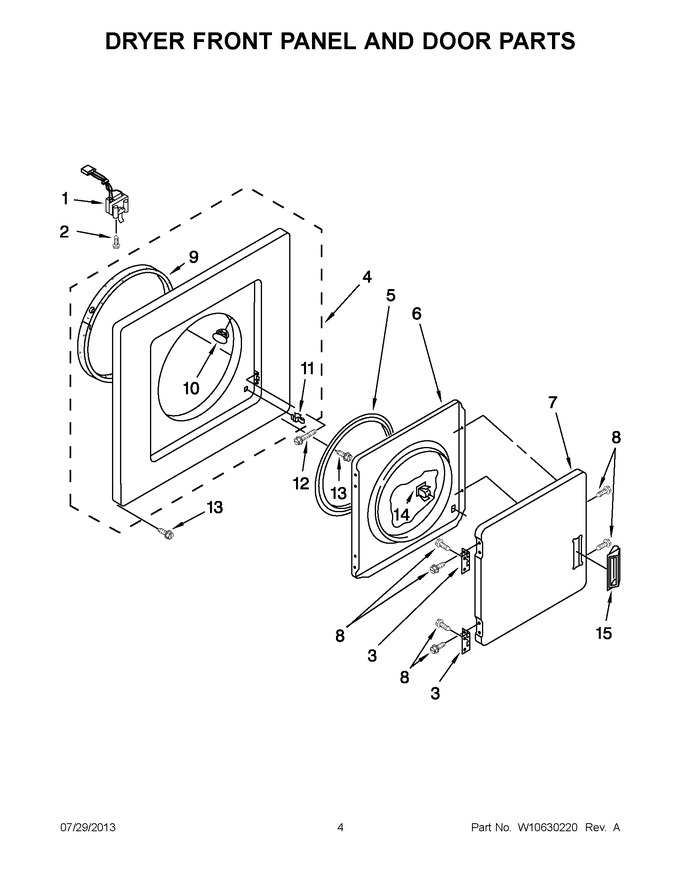

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3406108		Switch, Door   (Replaces: 3406108)			Immediately	$ 43.28
2	WP3395530		Screw   (Replaces: 697773)				$ 8.57
3	WP348023		Hinge And Pin Assembly   (Replaces: 348023)				$ 9.32
4	285314		Panel, Front   (Replaces: 692619)				$ 310.75
5	W11613302		Seal, Door   (Replaces: W10465697)				$ 56.31
6	280077		Door, Rear   (Replaces: 695656)				$ 207.46
7	WP348205		Door, Outer (white)   (Replaces: 348205)			Immediately	$ 154.76
8	WP694091		Screw   (Replaces: 694091)				$ 7.55
9	279264		Seal And Bearing Assembly   (Replaces: 8066123)			Immediately	$ 85.45
10	279220		Clip, Felt Pad   (Replaces: 685203)				$ 23.55
11	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
12	WP681414		Screw   (Replaces: 3390663)			Immediately	$ 8.47
13	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
14	WP3389441		Assembly, Door Catch   (Replaces: 3389441)			Immediately	$ 7.29
15	WP686711		Handle, Door   (Replaces: 686711)			Immediately	$ 8.35
