SELECT A DIAGRAM

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts

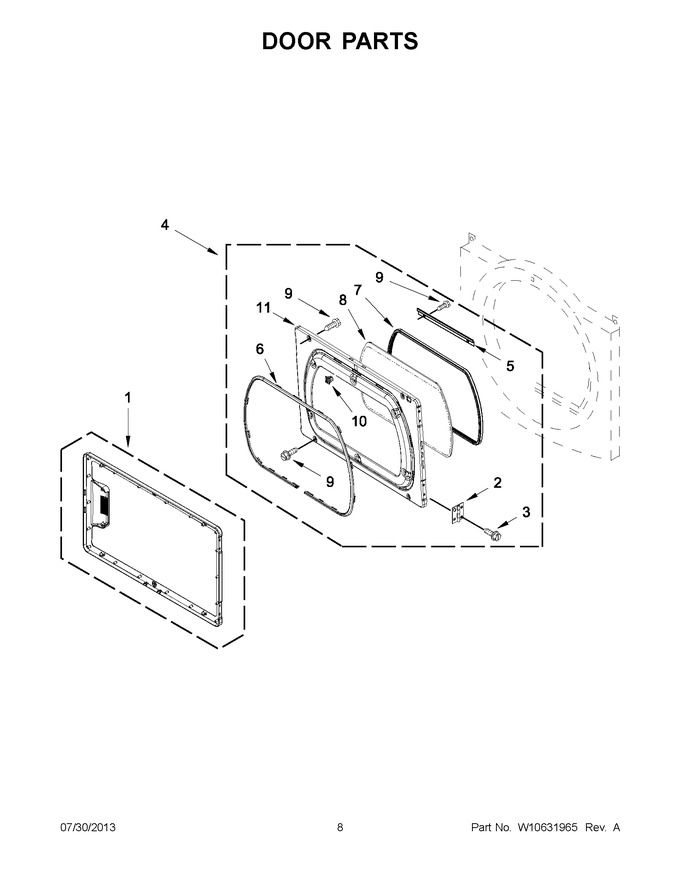

04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10284127		Assembly, Outer Door (white)   (Replaces: W10284127)				$ 222.35
1	W10459655		Assembly, Outer Door (chrome Shadow)				$ 211.69
2	WPW10279703		Assembly, Hinge & Pin (silver)   (Replaces: W10279703)				$ 75.83
2	W10575696		Assembly, Hinge & Pin (white)		Appelez-nous	-
3	WP488627		Screw   (Replaces: 342055)				$ 8.11
4	W11652037		Assembly, Inner Door   (Replaces: W10513690)				$ 208.90
5	W10822054		Retainer, Window   (Replaces: 8519354)			Immediately	$ 18.01
6	WPW10354795		Seal, Door   (Replaces: W10354795)				$ 130.12
7	W11676508		Seal, Window   (Replaces: W10284122)				$ 28.37
8	WPW10284121		Glass, Door   (Replaces: W10284121)				$ 263.61
9	WP3373329		Screw   (Replaces: 3393258)				$ 8.52
10	279570		Assembly, Door Catch   (Replaces: 690081)			Immediately	$ 8.89
11	W10822056		Door, Inner   (Replaces: W10470571)				$ 219.14

    View Diagram in Separate Window       Print Part List
