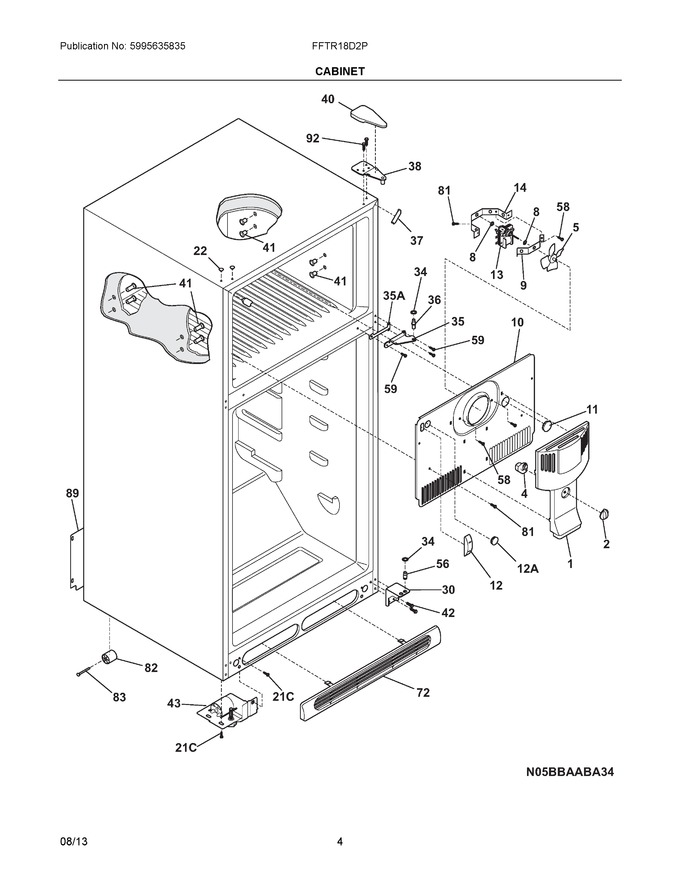

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241652306 | Cover-fan |
|
- | |||||
| 2 | 240367001 | Knob-damper Control |
|
Immediately | $ 64.04 | ||||
| 4 | 241523701 | Damper-fan Cover |
|
$ 19.16 | |||||
| 5 | 5308000010 | Fan Blade, Red, Evaporator Fan |
|
Immediately | $ 54.48 | ||||
| 8 | 240438003 | Bushing-motor Mtg, (2) (Replaces: 242014101) |
|
$ 19.38 | |||||
| 10 | 241652214 | Cover-evap Coil |
|
$ 65.31 | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 50.56 | |||||
| 12 | 242193602 | Plug-hole, Icemaker |
|
$ 16.01 | |||||
| 13 | 241854301 | Motor-fan, W/frzr Harness |
|
Immediately | $ 211.68 | ||||
| 14 | 240438003 | Bracket-motor Mtg, Rear (Replaces: 5303292397) |
|
$ 19.38 | |||||
| 22 | 215774918 | Plug-button, Black, Upr Hinge Holes |
|
$ 10.95 | |||||
| 30 | 240314011 | Bracket-lower Hinge, Black (Replaces: 240314003) |
|
Immediately | $ 85.84 | ||||
| 34 | 240311303 | Washer, Hinge, Nylon, (2) |
|
Immediately | $ 11.80 | ||||
| 35 | 240313803 | Bracket-ctr Hinge, Black |
|
$ 178.76 | |||||
| 36 | 240516402 | Pin-center Hinge |
|
- | |||||
| 37 | 242161202 | Trim-cabinet Corner, Black, (2) |
|
Immediately | $ 8.66 | ||||
| 38 | 240313703 | Bracket-upper Hinge |
|
Immediately | $ 35.86 | ||||
| 40 | 240354404 | Cover-upper Hinge, Black |
|
$ 68.40 | |||||
| 41 | 5304500407 | Grommet, Shelf Mtg, 1.25", Lh, (4) (Replaces: 5308009759) |
|
Immediately | $ 7.09 | ||||
| 42 | 240578902 | Screw, Hex Head, 1/4-20 X 5/8 |
|
Immediately | $ 15.75 | ||||
| 43 | 241889002 | Roller Assy, Front Lh, (2) |
|
$ 70.09 | |||||
| 56 | 240516502 | Pin-lower Hinge |
|
$ 80.89 | |||||
| 58 | 5304456287 | Screw, Hex Washer Head, 8-15a X 0.500 |
|
$ 0.76 | |||||
| 59 | 240442707 | Screw-#10-32 X 3/4, Black |
|
Immediately | $ 3.15 | ||||
| 72 | 241839407 | Grille/kickplate, Black |
|
Immediately | $ 65.36 | ||||
| 81 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 82 | 5304418225 | Roller, Compressor Base, Rear, (2) |
|
$ 57.30 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 39.27 | ||||
| 89 | 241733911 | Cover-access, With Label (Replaces: 241733907) |
|
$ 56.12 | |||||
| 92 | 241710601 | Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg |
|
$ 14.96 | |||||
| 12A | 240374401 | Plug-wtr Inlet Tube, Round, 1 |
|
$ 12.15 | |||||
| 21C | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 15.75 | ||||
| 35A | 240336803 | Spacer-hinge, Center, Black |
|
$ 12.60 | |||||
| NIA | 241889001 | Roller Assy, Front Rh, (2) |
|
Immediately | $ 71.62 | ||||
| NIA | 5304434189 | Seal-coil Cover (Replaces: 240568601) |
|
$ 74.03 | |||||
| NIA | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 16.85 | |||||
| NIA | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.37 | |||||
| NIA | 215474201 | Washer, "slinger", Nylon, Evap Fan Shaft |
|
Immediately | $ 20.48 | ||||
| NIAA | 241586701 | Plug-foam-wtr-inlet, Round |
|
$ 19.69 |
