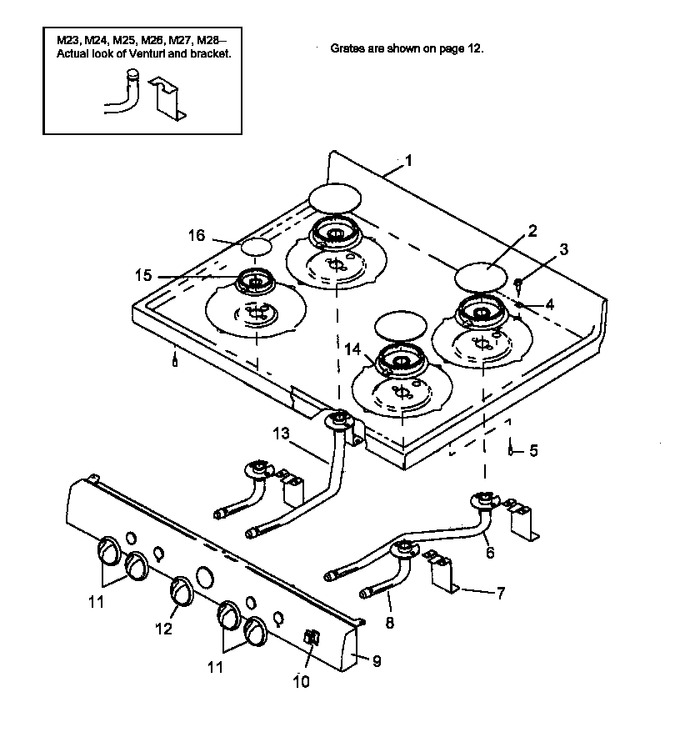

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	306075L		Maintop-almond		Appelez-nous	-
2	314638B		Cap, Burner (large)		Appelez-nous	-
3	Y0309358		Assy, Electrode		Appelez-nous	-
4	Y07714200		Clip, Electrode		Appelez-nous	-
5	Y0310036		Screw, Stud		Appelez-nous	-
6	Y0314736		Assy, Venturi-rr		Appelez-nous	-
7	06559200		Support, Sealed Burner		Appelez-nous	-
8	Y0314735		Venturi Assy		Appelez-nous	-
9	07721201L		Pnl, Manifold(almond)		Appelez-nous	-
10	74008765		Switch, Rocker (almond)   (Replaces: Y07634803)				$ 92.75
11	07717804		Knob, Top Burner		Appelez-nous	-
12	07723402		Knob, Thermostat		Appelez-nous	-
13	0314734		Assy, Venturi-lr		Appelez-nous	-
14	Y0307339		Burner, 4`` Die Cast		Appelez-nous	-
15	Y0307338		Burner, 3`` Die Cast		Appelez-nous	-
16	314637B		Cap, Burner (small)		Appelez-nous	-
NI	8169479		Screw, No.8-18 X 1/2 P Flt Hd   (Replaces: Y0041811)				$ 7.30
NI	Y07714800		Harness, Wire (ignitor)		Appelez-nous	-
