SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet

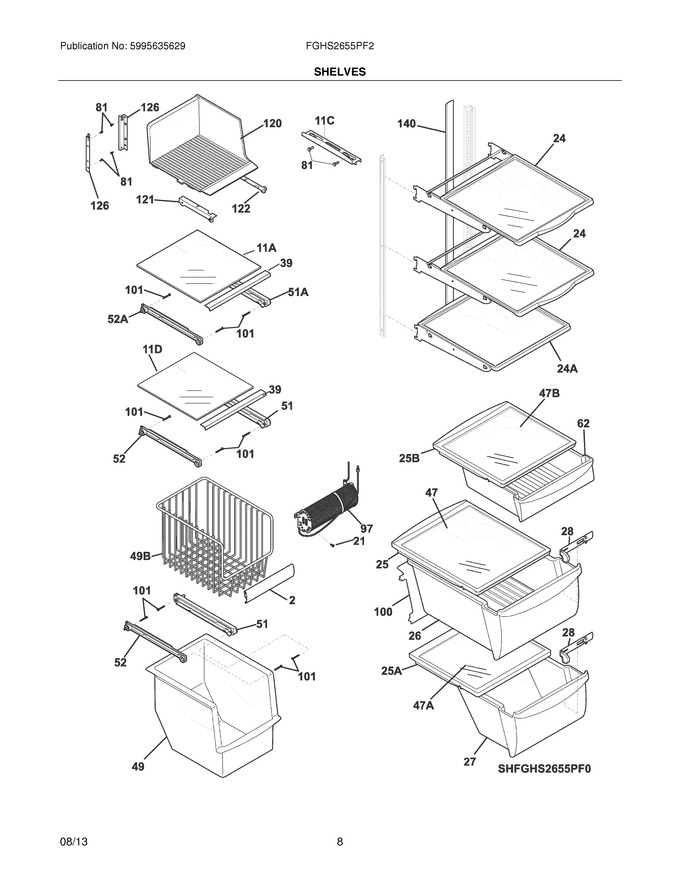

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


20 - Wiring Schematic


21 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241510604		Trim-basket				$ 74.08
21	218843801		Screw,hx Wshr Hd Sems ,8-15a X 0.625   (Replaces: 5304455658)				$ 16.01
24	240350150		Shelf,spill-safe ,sliding ,cantilever				$ 196.33
25	240599301		Cover-crisper Pan,upper			Immediately	$ 104.87
26	240351061		Pan-crisper,upper			Immediately	$ 122.23
27	240351240		Pan-crisper,lower				$ 226.05
28	240362201		Control-humidity				$ 77.18
39	240367602		Trim-shelf,front				$ 50.40
47	240350649		Insert-pan Cover,glass			Immediately	$ 137.66
49	240564401		Basket-sliding			Immediately	$ 176.56
51	240343002		Hanger-basket,rh				$ 72.47
52	240343102		Hanger-basket,lh				$ 77.52
62	241969607		Pan-meat   (Replaces: 241969601)				$ 227.19
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile				$ 15.75
97	242220510		Water Tank   (Replaces: 241532007)				$ 133.09
100	240326304		Cover-water Tank				$ 81.74
101	218493101		Screw,hex Washer Head ,8-18ab X 1-3/4				$ 14.96
120	241691901		Shelf-ice Cream				$ 88.47
121	241561001		Rail-ice Cream Shelf,lh				$ 112.92
122	241692001		Rail-ice Cream Shelf,lh				$ 95.21
126	241674401		Channel,auger Mtg ,lh				$ 52.76
126	241674402		Channel,auger Mtg ,rh				$ 48.04
140	241812501		Channel,wtr Tube Cover		Appelez-nous	-
11A	240350604		Shelf-freezer,glass ,upper				$ 127.24
11C	240324101		Shelf-pizza				$ 66.57
11D	240350605		Shelf-freezer,glass ,lower				$ 118.81
24A	240355270		Shelf-``spill-safe``,fixed				$ 189.59
25A	240350903		Cover-crisper Pan,lower				$ 102.21
25B	241969501		Cover-meat Pan			Immediately	$ 106.90
47A	240350603		Insert-pan Cover,glass			Immediately	$ 128.36
47B	240443384		Insert-pan Cover,glass				$ 168.53
49B	240530504		Basket-sliding,upper ,full				$ 207.81
51A	240395502		Hanger-basket,rh				$ 81.11
52A	240395602		Hanger-basket,lh				$ 68.51
NI	241868101		Air Guide		Appelez-nous	-
NI	240349801		Clip-slide,pan				$ 22.75
NI	240362101		Clip-slide,cover				$ 52.25
NI	241595202		Clip-slide,crisper				$ 20.22
NI	242200102		Clip,tubing ,90 Deg Elbow   (Replaces: 242200101)				$ 11.81
NI	242146265		Label,energy Guide		Appelez-nous	-
NI	241806601		Connector-water,straight ,5/16 To 5/16   (Replaces: 242103001)			Immediately	$ 78.40

    View Diagram in Separate Window       Print Part List
