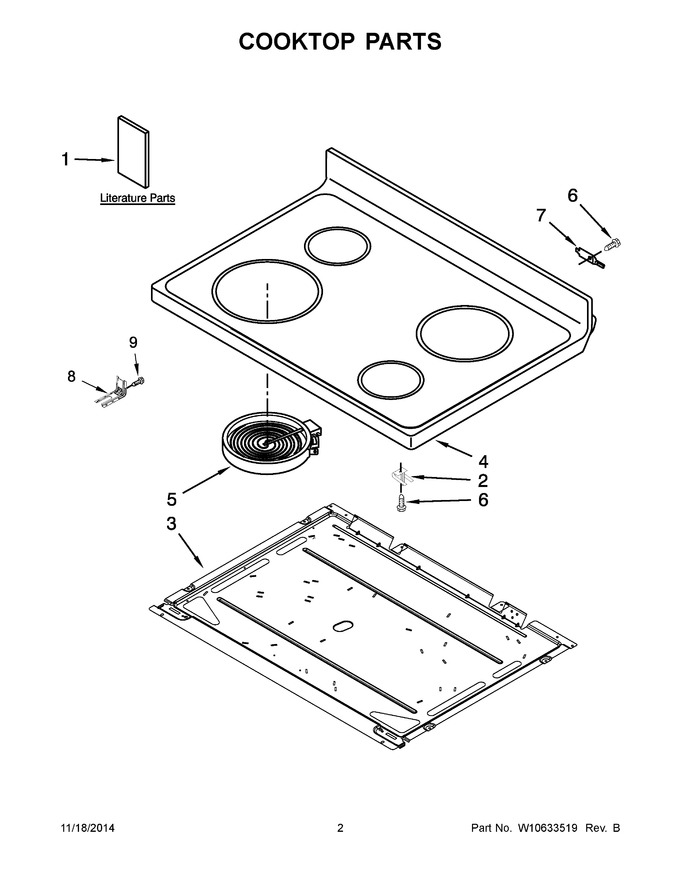

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403811		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
4	W10248202		Cooktop (white)   (Replaces: W10202165)				$ 603.76
5	WPW10242957		Element (2000w) (left Front And Right Rear)   (Replaces: 8523695)				$ 360.66
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 13.18
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip   (Replaces: 7101P485-60)				$ 30.72
1A	W10572534		User Instructions		Appelez-nous	-
1B	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1C	W10384447		Tech Sheet (english)		Appelez-nous	-
4A	W10248201		Cooktop (black)   (Replaces: W10202162)				$ 664.82
5A	W10823699		Element (1500w) (right Front And Left Rear)   (Replaces: 8523697)			Immediately	$ 169.95
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11171875		Harness, Wire (main)   (Replaces: W10251766)		Appelez-nous	-
NI	W10273585		Harness, Wire (cooktop Left)		Appelez-nous	-
NI	W10273584		Harness, Wire (cooktop Right)				$ 134.76
NI	W11232223		Harness, Door Switch Sensor   (Replaces: W10174459)				$ 216.04
NI	3184020		Wire, Ground   (Replaces: 8523279)				$ 86.92
NI	313660		Clip, Ground Wire		Appelez-nous	-
NI	WPW10144763		Tie, Cable   (Replaces: W10144763)				$ 7.93
