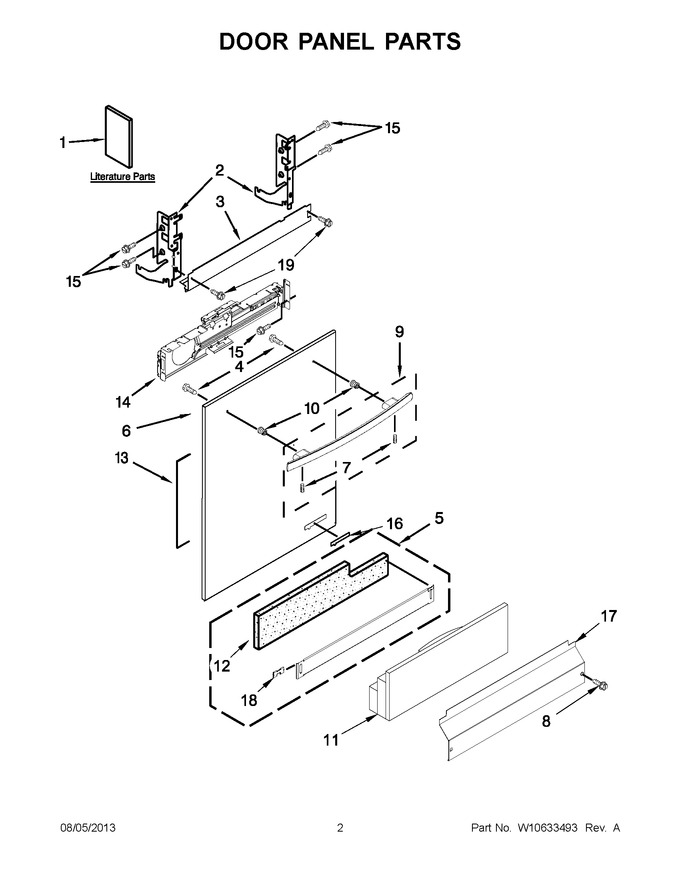

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10501738 Installation Instructions Appelez-nous -
1 W10501742 Energy Guide Appelez-nous -
1 W10596235 Use & Care Guide, English/french Appelez-nous -
1 W10455257 Tech Sheet, English Appelez-nous -
1 W10455258 Tech Sheet, French Appelez-nous -
2 W11806608 Arm, Hinge (right Hand)   (Replaces: 8534853) In-Stock Immediately $ 142.24

2 W11806565 Arm, Hinge (left Hand)   (Replaces: 8534854) In-Stock Immediately $ 142.39

3 W10850371 Barrier, Vapor Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W10871196 Toe Panel (black)   (Replaces: 8558252) Special Order $ 174.04

5 WPW10586591 Toe Panel (white)   (Replaces: 8558253) Special Order $ 309.39

6 WPW10501719 Panel, Front (black)   (Replaces: W10501719) Special Order $ 342.30

6 WPW10501720 Panel, Front (white)   (Replaces: W10501720) Special Order $ 380.94

7 W10276608 Screw, Set Special Order $ 46.73

8 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

8 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

9 W10496320 Handle Assembly (white) Special Order $ 84.58

9 WPW10496321 Handle Assembly (black)   (Replaces: W10496321) Special Order $ 228.48

10 W10208695 Stud, Mounting Special Order $ 22.56

11 W10831329 Insulation, Three Layer   (Replaces: W10350437) In-Stock Immediately $ 43.30

12 W10831329 Insulation, Toe Panel   (Replaces: W10385107) In-Stock Immediately $ 43.30

13 WPW10073520 Insulation, Door   (Replaces: W10073520) Special Order $ 96.23

14 W11116870 Bracket, Control Panel   (Replaces: W10194911) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 W10190723 Nameplate (white) Special Order $ 111.95

16 WPW10214168 Nameplate (black)   (Replaces: W10190724) Special Order $ 85.95

17 WPW10441007 Access Panel (white)   (Replaces: W10195778) Special Order $ 170.94

17 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 42.25

18 WP8269016 Clip, Ground   (Replaces: 8269016) Special Order $ 11.21

19 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40


    View Diagram in Separate Window     Print Icon   Print Part List
